Abell A-80 - Exploded View

A-80 UHF SERVICE MANUAL
- 32 -

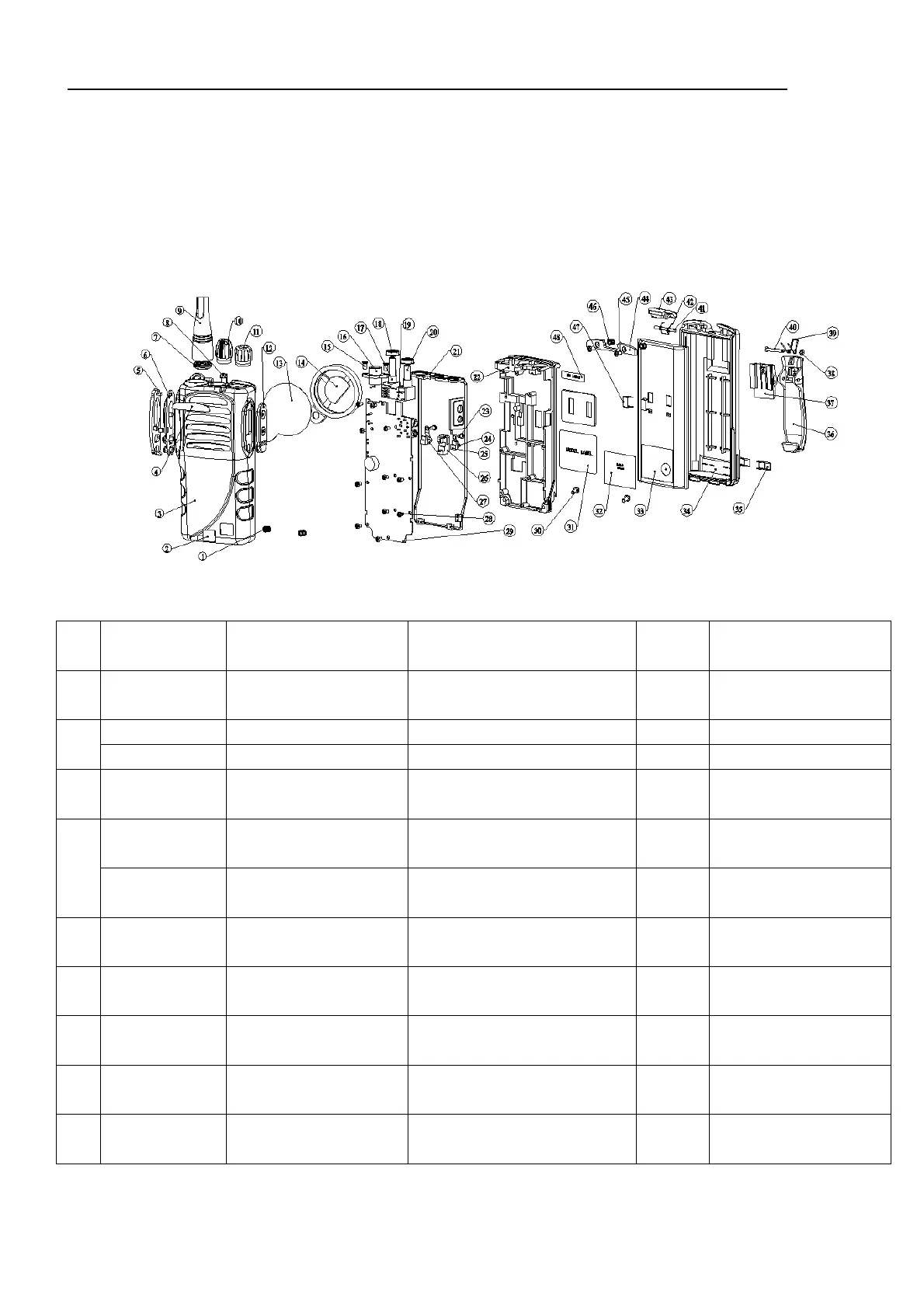

EXPLODED VIEW
Ref.
No.
Code Material Specification Quantity Remark
○
1
M19040-002 Nut Φ4.0×3.5×M2.5 2
Brass-colored Molding
on the cover
T15307-017 “雷霆战警”PS mark 1 Domestic (Match)
○
2
T15307-020 “A-80”English PS mark 1 Oversea (match)
○
3
P01307-020 Shell 1
ABS+PC/ Contained
channel mark
T15307-018
“ ABELL 欧 标 ” PS mark
(Chinese）
1 Domestic
○
4
T15307-019
“ABELL”PS mark
(English ）
1 Oversea
○
5
P11307-003 PTT plastic key bracket 1 ABS
○
6
L01307-007 PTT rubber key 1 RUBBER'50°
○
7
M19013-002 Nut Φ13.5×2.5×M9 1
Brass-color, match with
antenna seat
○
8
P04307-006
Indicted light guiding
pole( light）
1 PC/ Transparence
○
9
A01A47-001 Antenna Antenna 146-174mhz
1
