A-80 UHF SERVICE MANUAL
- 6 -
DISASSEMBLEY FOR REPAIR

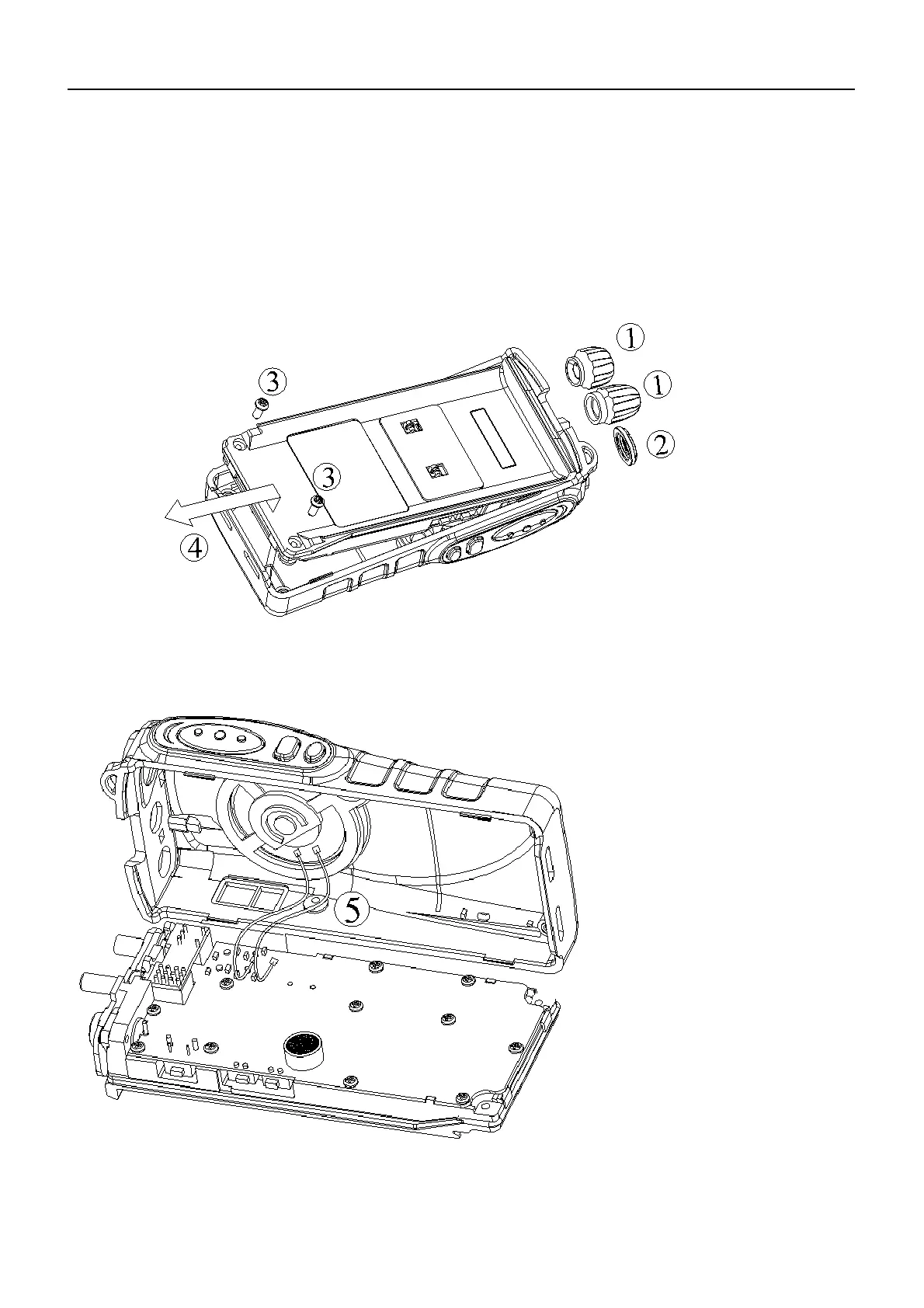

Separating the case assembly from the chassis
1．Remove the knob① and the round nut②
2．Remove the two screws③。
3．Expand the right and left sides of the bottom of the case assembly, lift the chassis, and remove it from
the case assembly④.
4． Taking care not to cut the speaker lead⑤, open the chassis and case assembly.
