S1 Service manual
7

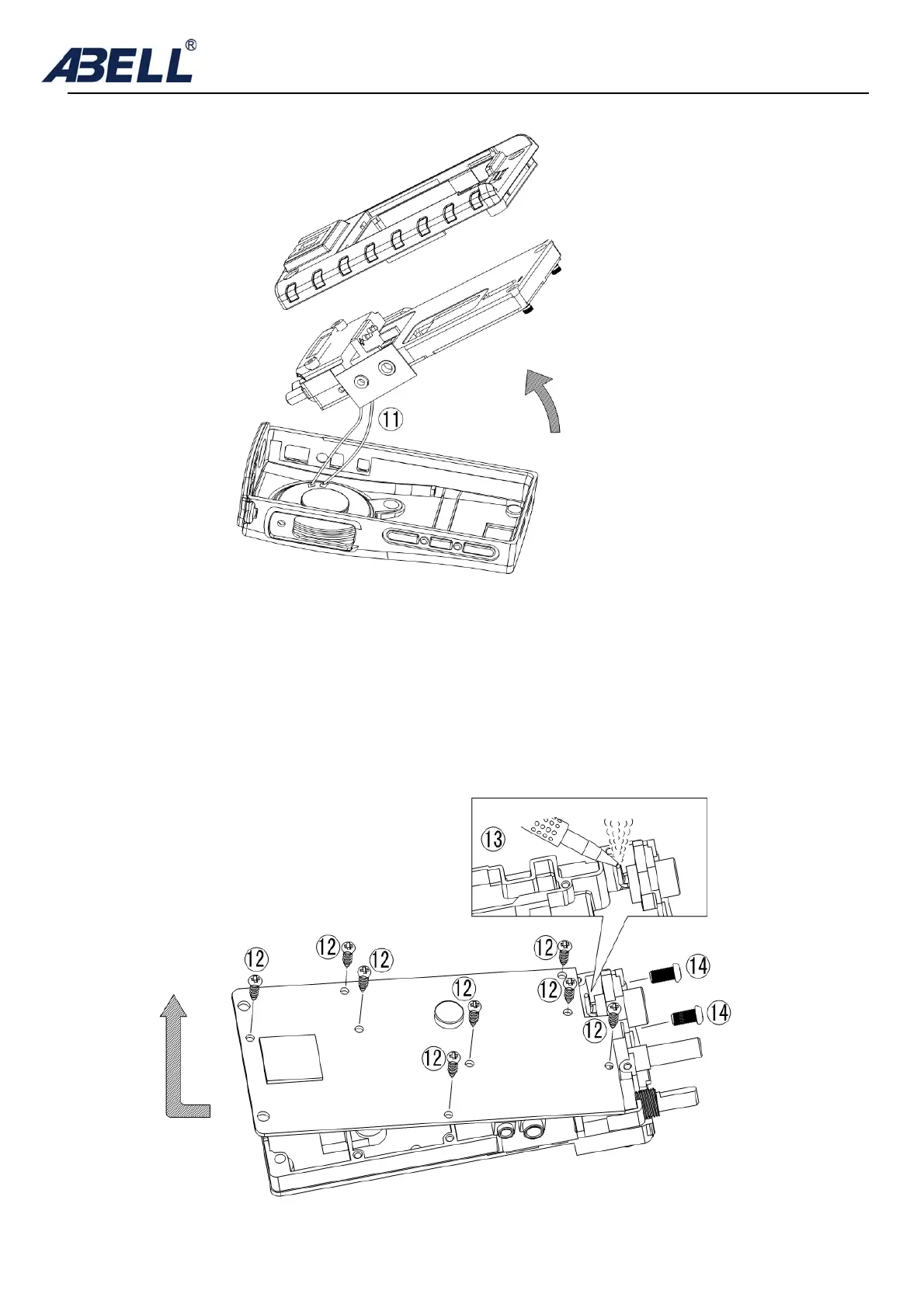

Separating the chassis from the unit
1．Remove 8 pcs screw⑿。
2．Remove the solder from antenna terminal using a soldering iron and then lift the unit from the
chassis⒀
3．Remove 2 pcs screw⒁ and remove the antenna connector。
NOTE：When reassembly the unit to the chassis, be sure to solder the antenna terminal.
