Ability AI-Vue VS1NL70 Quick Start Guide

AI-Vue Camera Quick Start Guide
12

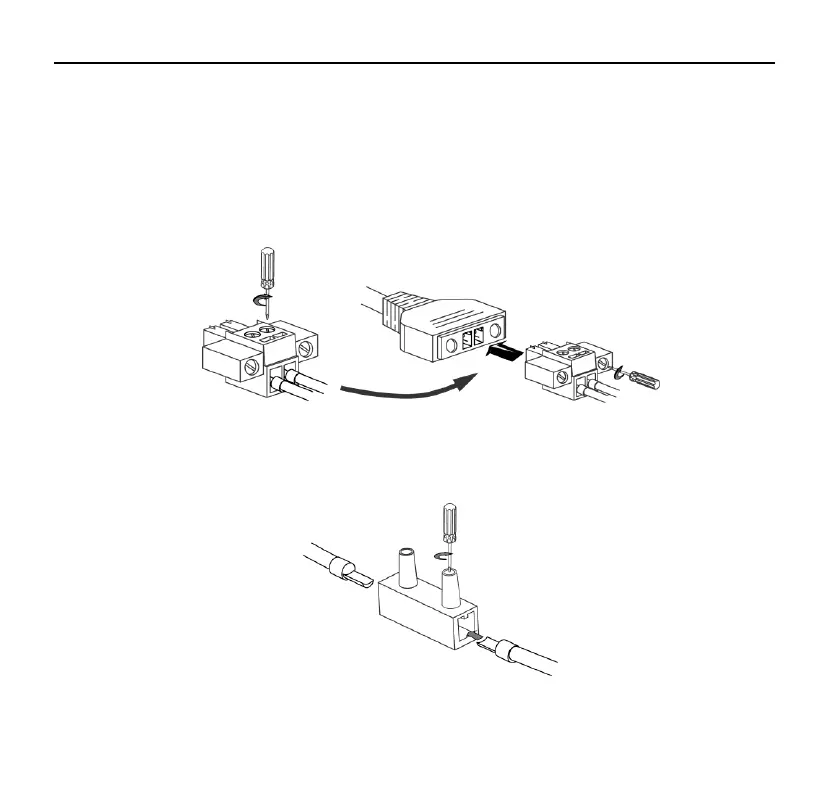

2.7-2 Power cable connection
Connect the ground cable to ground the device, and then connect the power cable. If crimp
terminals are not used, the wire thickness cannot exceed 1.5mm², and the length cannot
exceed 25m. If crimp terminals are used, the wire can be up to 0.75mm² for a 15 m length of
wiring or up to 1.0mm² if 20 m is required. Longer wiring is not supported. The ground
impedance cannot exceed 5 ohms.
2.7-3 Ground cable installation
Please connect ground cable of camera to ground.

Ability AI-Vue VS1NL70 Specifications

General

Brand	Ability
Model	AI-Vue VS1NL70
Category	Security Camera
Language	English
