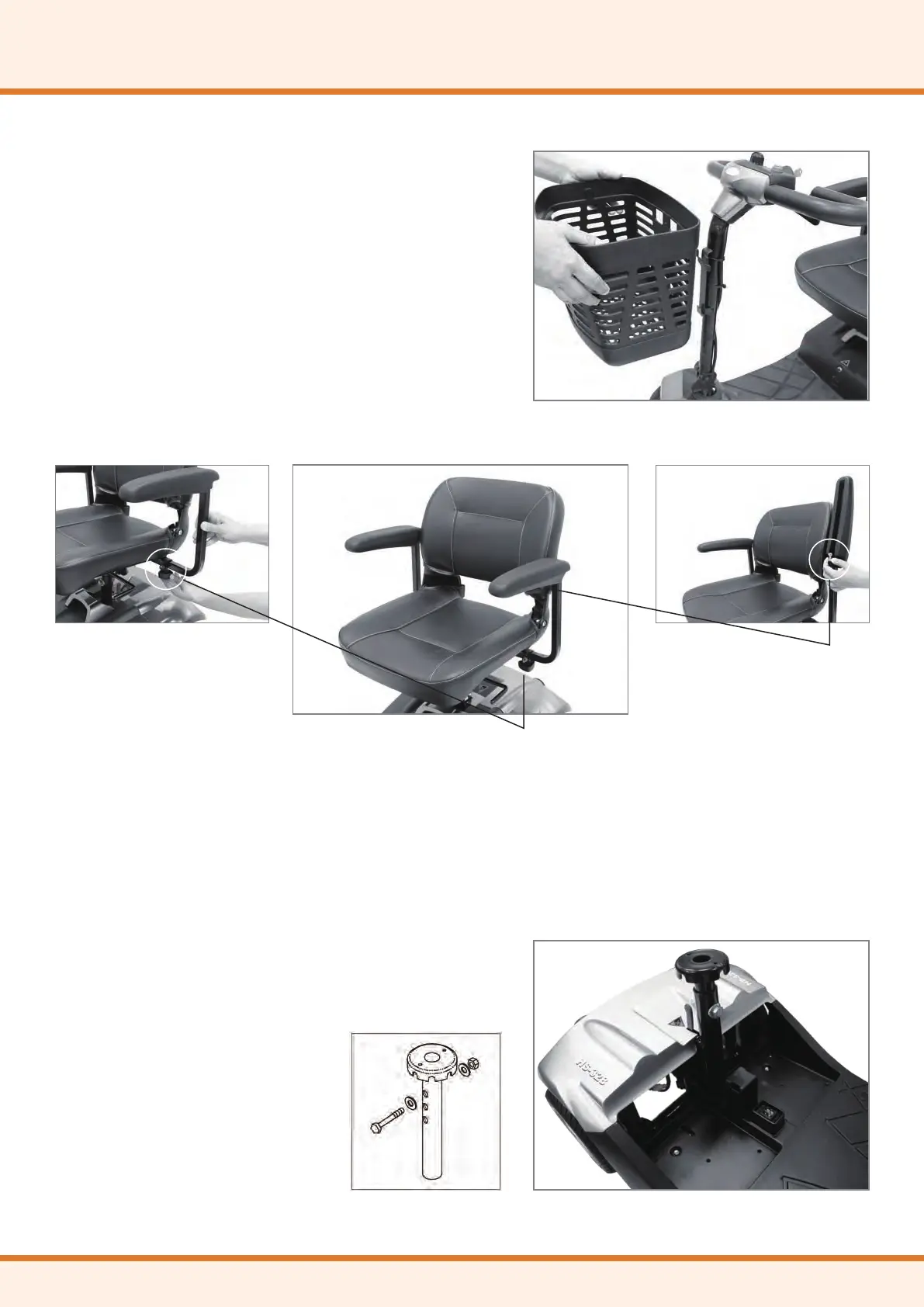

Basket assembling and disassembling :
• Place the Front Basket (M) to the bracket on the tiller.
• Remove the Front Basket (M) and place it aside.
Armrest assembling and angle adjustment :
• Adjust armrest to most comfortable length,
then lock the Knob (N).
• Adjust Screw (O) height to preferable armrest's angle.
Seat height adjustment :
• Remove the seat, then screw, nut and washer from seat post.
• Adjust seat post to desired height, then attached tightly with screw, nut and washers.
• Assemble the seat back to its original position.
• Seat height adjustable 520mm / 545mm / 570mm.
Instruc�on Booklet: Iden�fica�on of Parts
08
(M)
(N)
(O)
