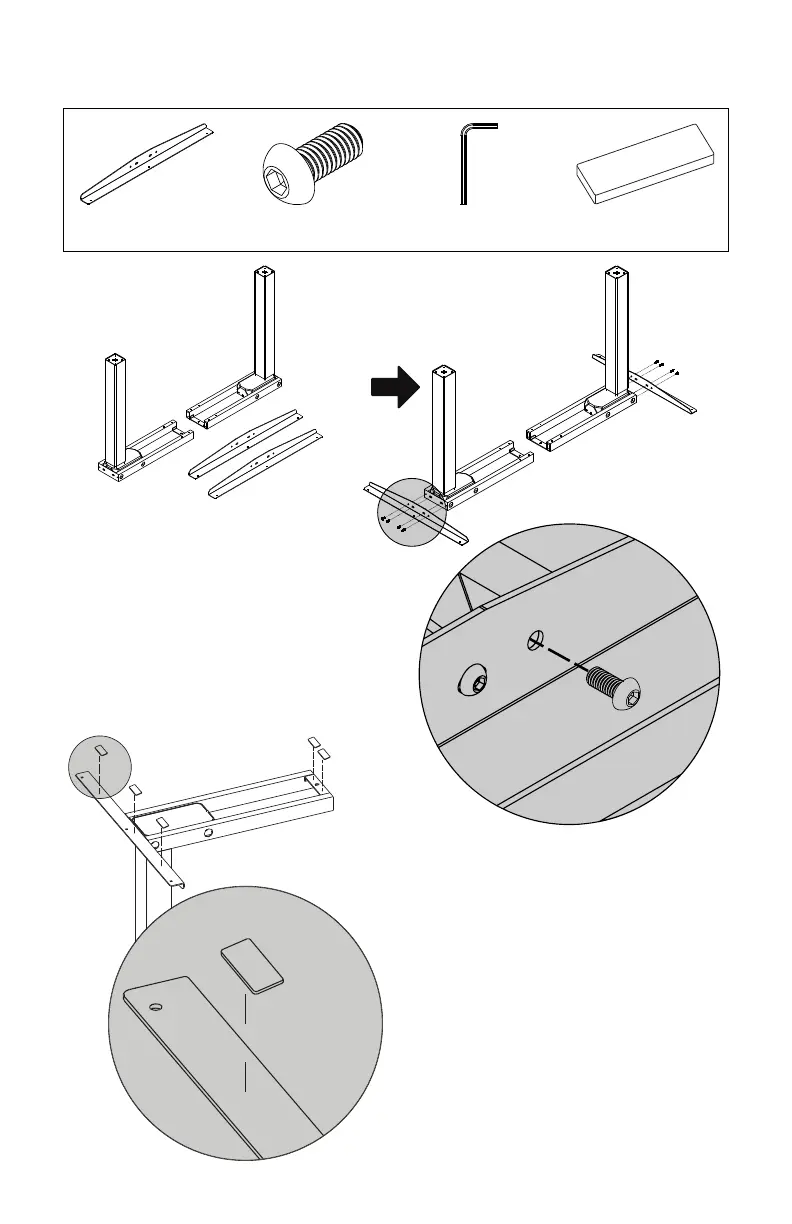

Step 2
:
Attach brackets and add noise reduction pads
Part C (2x) Part I (8x) Part K (1x) Part L (10x)
C
I
8x
Thread long machine screws as shown here.
Once all screws are in place, tighten all screws
from step 1 and step 2 with the long end of the
hex key (Part K).
5
10x
Flip the legs over as shown here.
Remove the backing on the noise reduction
pads (Part L) and position along the
bracket and frame end as shown.
Perform this step on both legs.
L
