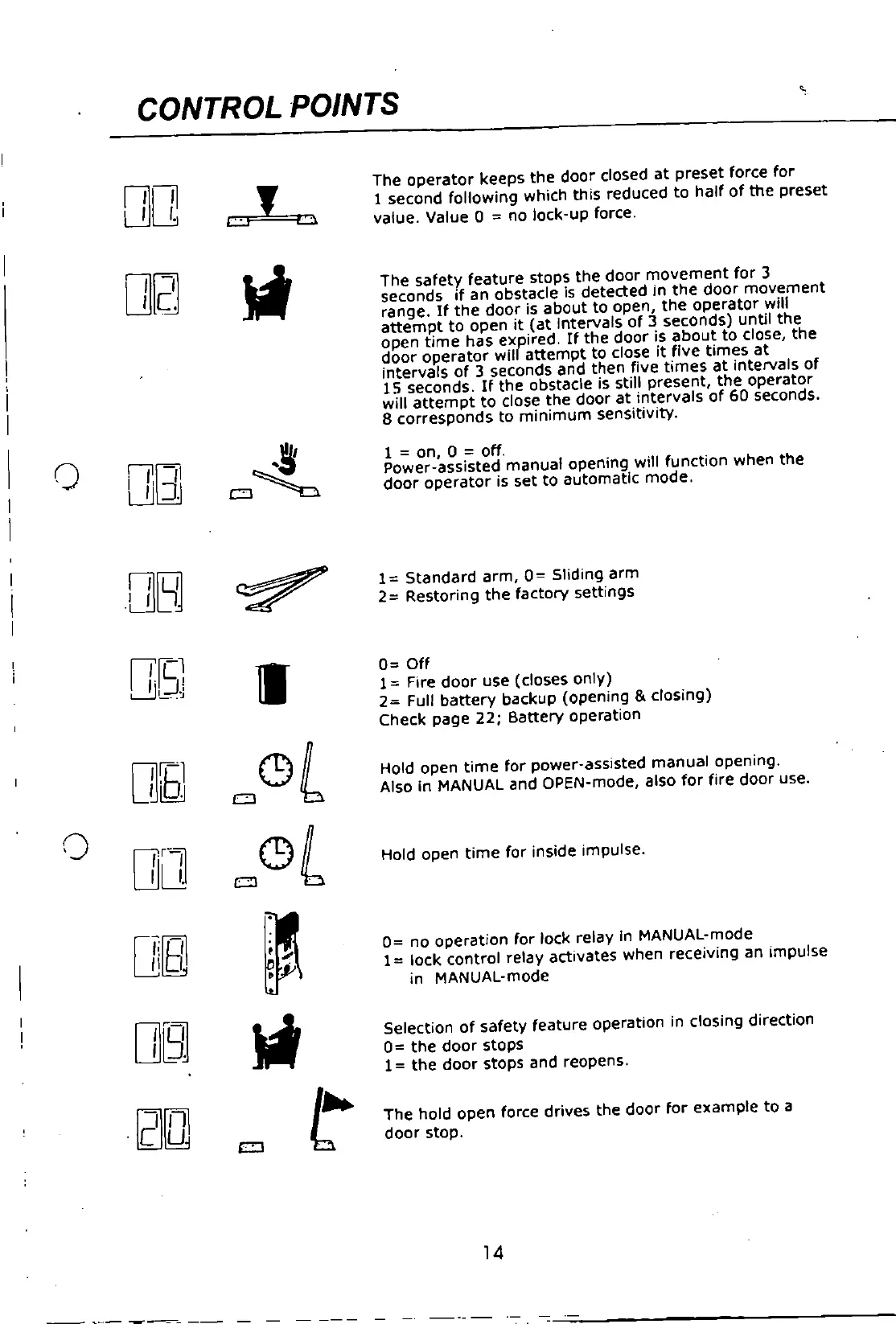

CONTROL POINTS
o
O
n
'Ui
DB
The operator keeps the door closed at preset force for
1 second following which this reduced to half of the preset
value. Value 0
=
no lock-up force.
The safety. feature stops the door movement for 3
seconds If an obstacle is detected In the door movement
range. If the door is about to open, the operator will
attempt to open it (at intervals of 3 seconds) until the
open time has expired. If the door is about to close, the
door operator will attempt to close It five times at
intervals of 3 seconds and then five times at Intervals of
15 seconds. If the obstacle is still present, the operator
will attempt to close the door at intervals of 60 seconds.
8 corresponds to minimum sensitivity.
1
=
on, 0
=
off.
Power-assisted manual opening will function when the
door operator is set to automatic mode.
DB
1= Standard arm, 0= Sliding arm
2= Restoring the factory settings
[J6J
11
0= Off
1= Fire door use (closes only)
2= Full battery backup (opening & closing)
Check page 22; Battery operation
Db]
CJ
(!)
L
Hold open time for power-assisted manual opening.
Also in MANUAL and OPEN-mode, also for fire door use.
r)
DO
CJ
(!)
L
Hold open time for inside impulse.
08
~
0= no operation for lock relay In MANUAL-mode
1= lock control relay activates when receiving an impulse
in MANUAL-mode
Os]
W
Selection of safety feature operation in closing direction
0= the door stops
1= the door stops and reopens.
.8[0]
t
The hold open force drives the door for example to a
c:J
door stop.
14
_
.•.
~----~----
- - ---- -
_.
-'.- .-
