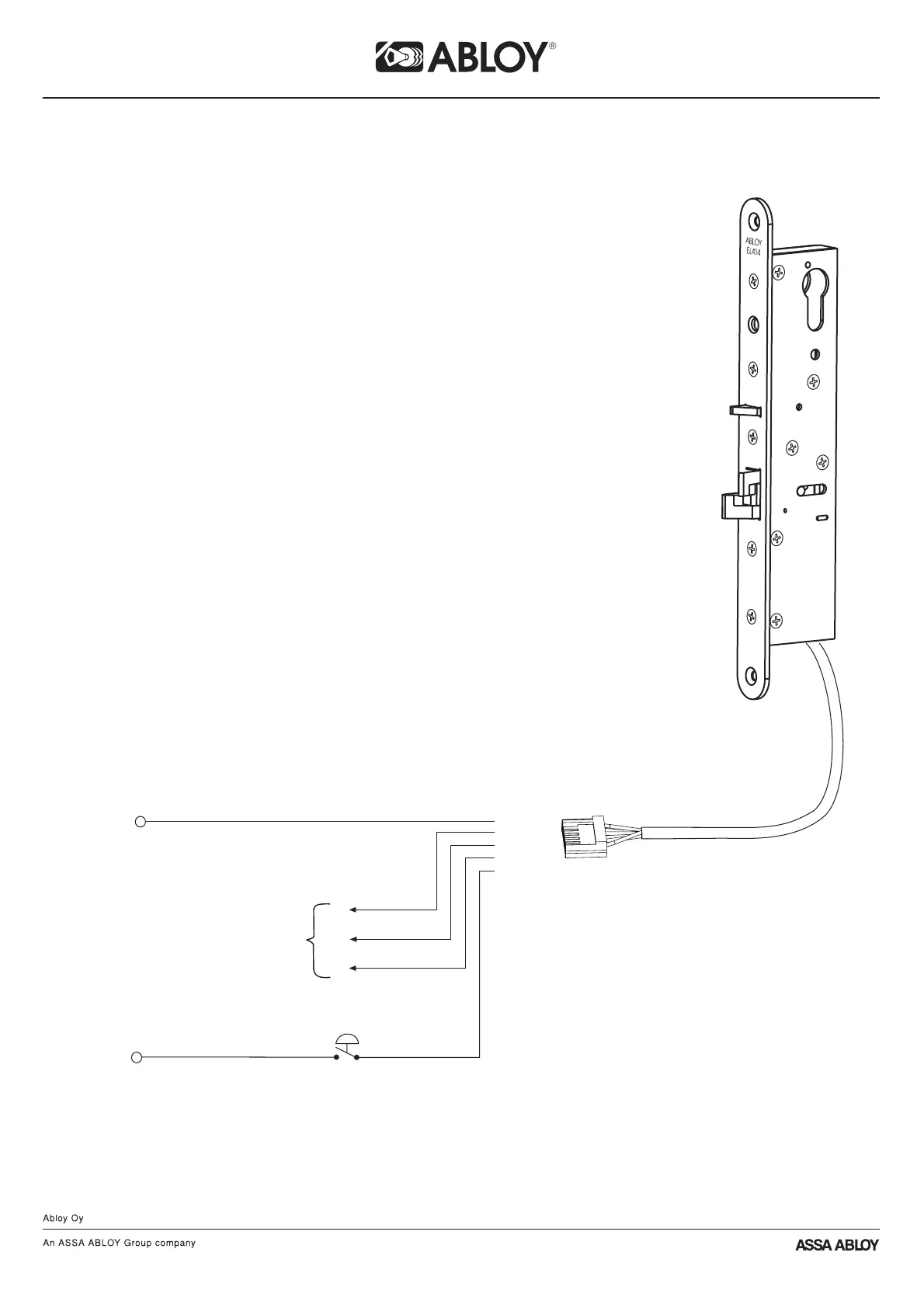

WIRING DIAGRAM
red
black
yellow
blue
green
PLEASE CHECK THE OPERATING VOLTAGE FROM THE LOCK CASE
LOCK CASE INCLUDES PROTECTION DIODES
C
NC
NO
STAB 24 VDC +/- 15%, 0.24A (+20°C)
STAB 12 VDC - 10%/+15%, 0.48A (+20°C)
+
-
MAXIMUM VALUES FOR MICRO SWITCHES: 0,8 A 30VAC RESIST; 0,8 A 30VDC RESIST; MAX. 20W.
NO VALUES TO BE EXCEEDED.
C= Common
NC= Locked
NO= Unlocked
OPEN/LOCKED
ENGLISH
