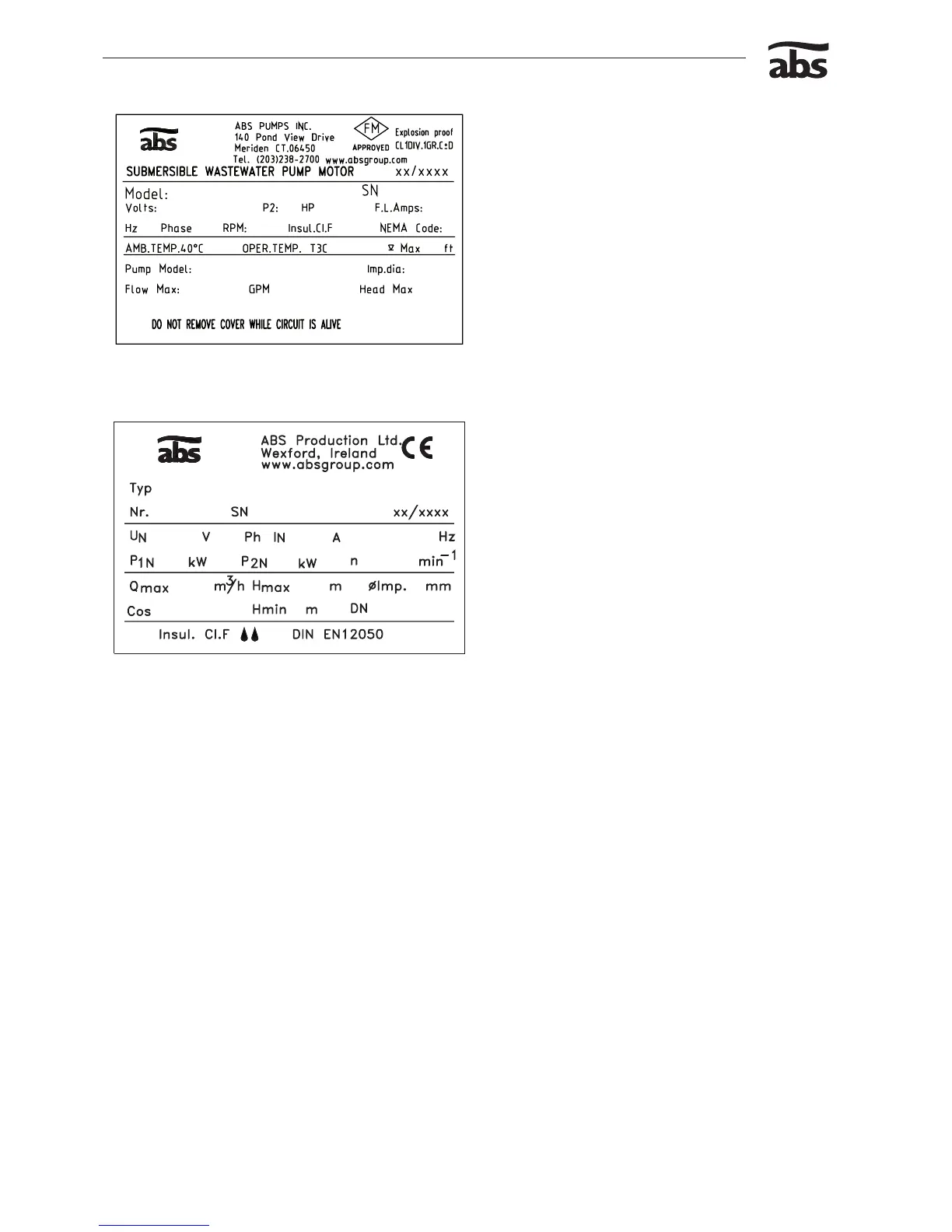

Legend
1002-00
Model Pump type/ Item No.
SN Serial No.
UN
Rated Voltage
P2 Rated Output Power HP
F.L.Amps Full Load Amps
Hz Frequency
Phase Three/Single Phase
RPM Speed min-1
Imp. dia Impeller diameter mm
Max. ▽
Max submersible depth Ft
Flow Max. Rated Discharge GPM
Head Max. Max. Head Ft
FM version nameplate
Legend
1003-00
Type Pump type
Nr./SN Item No./Serial No.
xx/xxxx Production date (Week/Year)
UN Rated Voltage V
IN Rated Current A
Frequency Hz
P1N Rated Input Power kW
P2N Rated Output Power kW
n Speed min-1
Qmax Max. Flow m3/h
Hmax Max. Head m
Ø Imp. Impeller diameter mm
DN Discharge diameter mm
SS
Water pressure tight
IP 68 Protection type
Standard version nameplate
2 Safety
The general and specific Health and Safety requirements are described in detail in the Safety Instructions for
ABS Products booklet. If anything is not clear or you have any questions as to safety make certain to contact
the manufacturer ABS.
3 Transport
m
During transport the unit should not be dropped or thrown.
c
The unit should never be raised or lowered by the power cable.
The unit is fitted with a lifting device to which a chain and shackle may be attached for transport purposes.
m
Any hoist used must be adequately dimensioned for the weight of the unit.
All relevant safety regulations as well as general good technical practice must be complied with.
