11. Commissioning of the receiver
a) Receiver connection

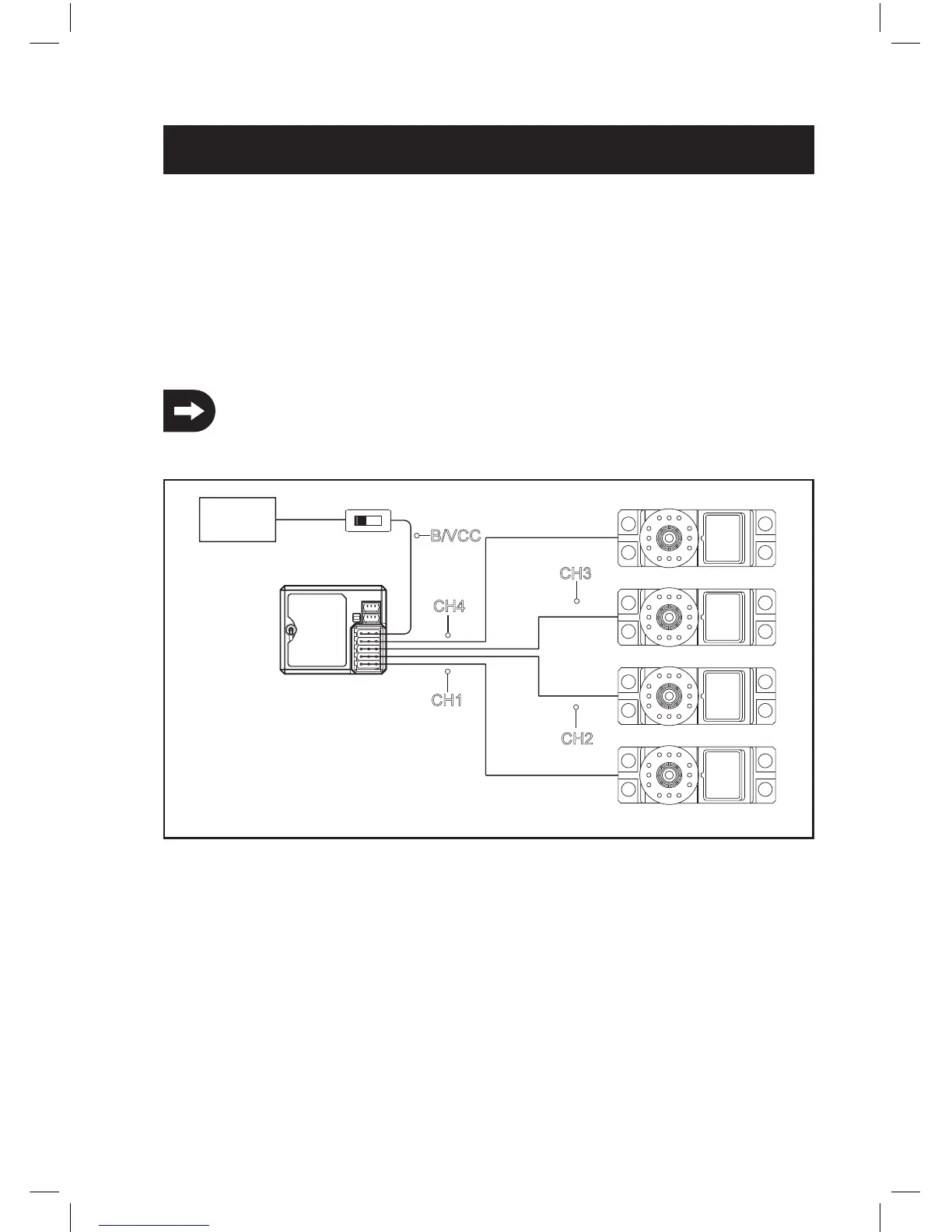

The receiver provides connectivity for up to four servos (CH1, CH2, CH3, CH4) and a receiver battery (B/VCC).
Always pay attention the correct polarity of the connector when you connect the servos. Plug contact for the pulse line
should be on the inner (left) pin connected (depending on the manufacturer of yellow, white or orange).
Plug contact for the negative line shoul be in the outside (right) pin connected (depending on the manufacturer black or brown).
Turn on the transmitter and then the receiver. If correctly binding function, the red LED indicator on the receiver flashes.
Check the correct function of the receiver and then turn it off again.
If the LED doesn´t flash or the servos have no function, you have to do the binding process.
For more information you can read about in the next section "Binding function“.
Picture 5
