Absolute HP Series - Fit a new diaphragm and diaphragm ring in the diaphragm base.; REPLACING THE VALVE

HP- 100
/
120
REPLACING THE CHAMBER BLOCK
HP
Replacing the Chamber Block
S
S
T
T
E
E
P
P
8
8
Fit a new diaphragm and diaphragm ring in the
diaphragm base.
●Be sure not to leave a gap between them.
S
S
T
T
E
E
P
P
9
9

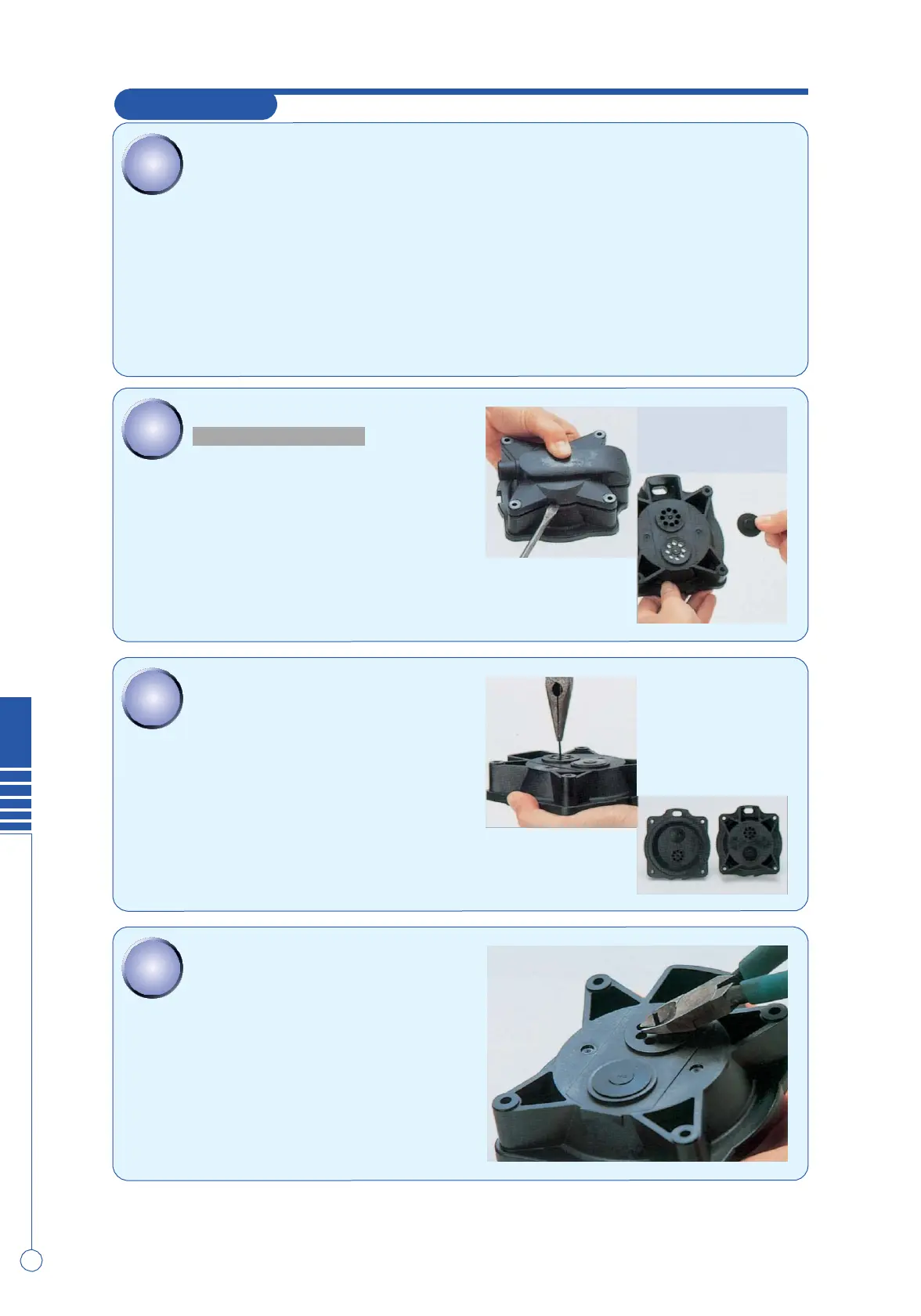

REPLACING THE VALVE
In case of replacing the whole diaphragm casing
block, move straight to
STEP 12 .
Separate casing A and casing B.
Remove the
valves from the casing B.
●If it is difficult to separate them, insert the tip of a
flatblade screwdriver into the clearance.
●Pull out the
valves as they can be removed easily.
S
S
T
T
E
E
P
P
1
1
0
0
Insert each new valve into the center hold of valve
seat, and secure them by pulling with radio pliers.
●When reinstalling the valves, make sure the exhaust
and intake sides are correctly fitted.
S
S
T
T
E
E
P
P
1
1
1
1
Cut away end of respective valves pulling parts
(just in front of thick parts) by
scissors or nippers.
4
