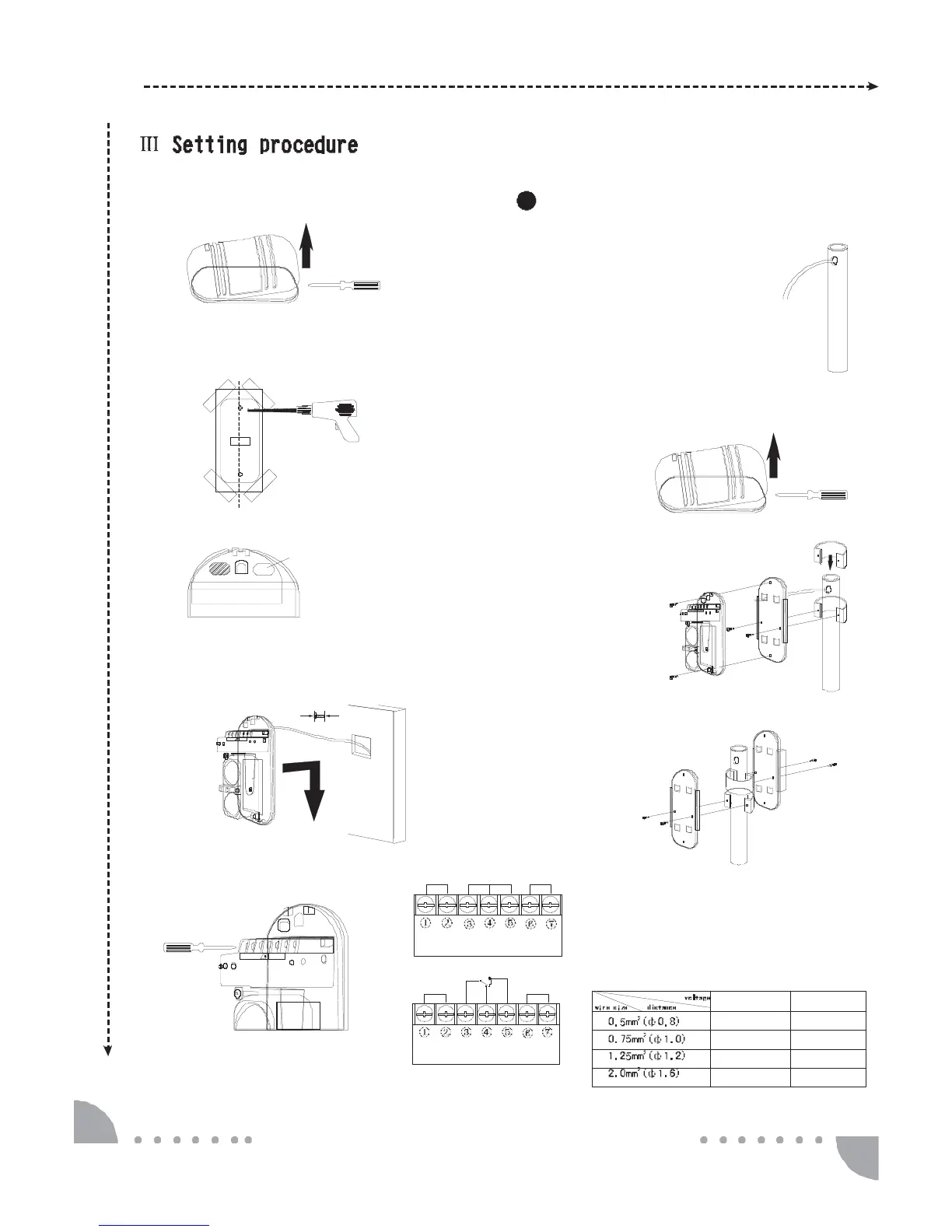

1.Remove the cover
2.Attach the paper stencil onto the location
where the equipment is to be mounted, and
drill the holes in the positions on its mark.
3.Put the cable through the hole for wiring.
Wiring hole
4.Fix the main body onto the wall
15mm
5.Connect the cable to the wire terminal.
Installation
Installation
Installation
Installation of
of
of
of fixed
fixed
fixed
fixed bracket
bracket
bracket
bracket
1.Drill a hole on the bracket and
extend out the cable from it.
2.Remove the cover.
3.Fasten the base-plate to the bracket.
(Back-to-back installation guiding diagram)
Tamperproof
6.Put on the cover after adjusting
the response time of the beam.
power supply spare terminals
transmitter
alarm output
power supply
receiver
switch terminal
Tamperproof
switch terminal
Wiring distance between transmitter and receiver
DC13.8V DC24V
300m 300m
400m 800m
700m 1400m
1000m 2000m
