User Operation Guide
6

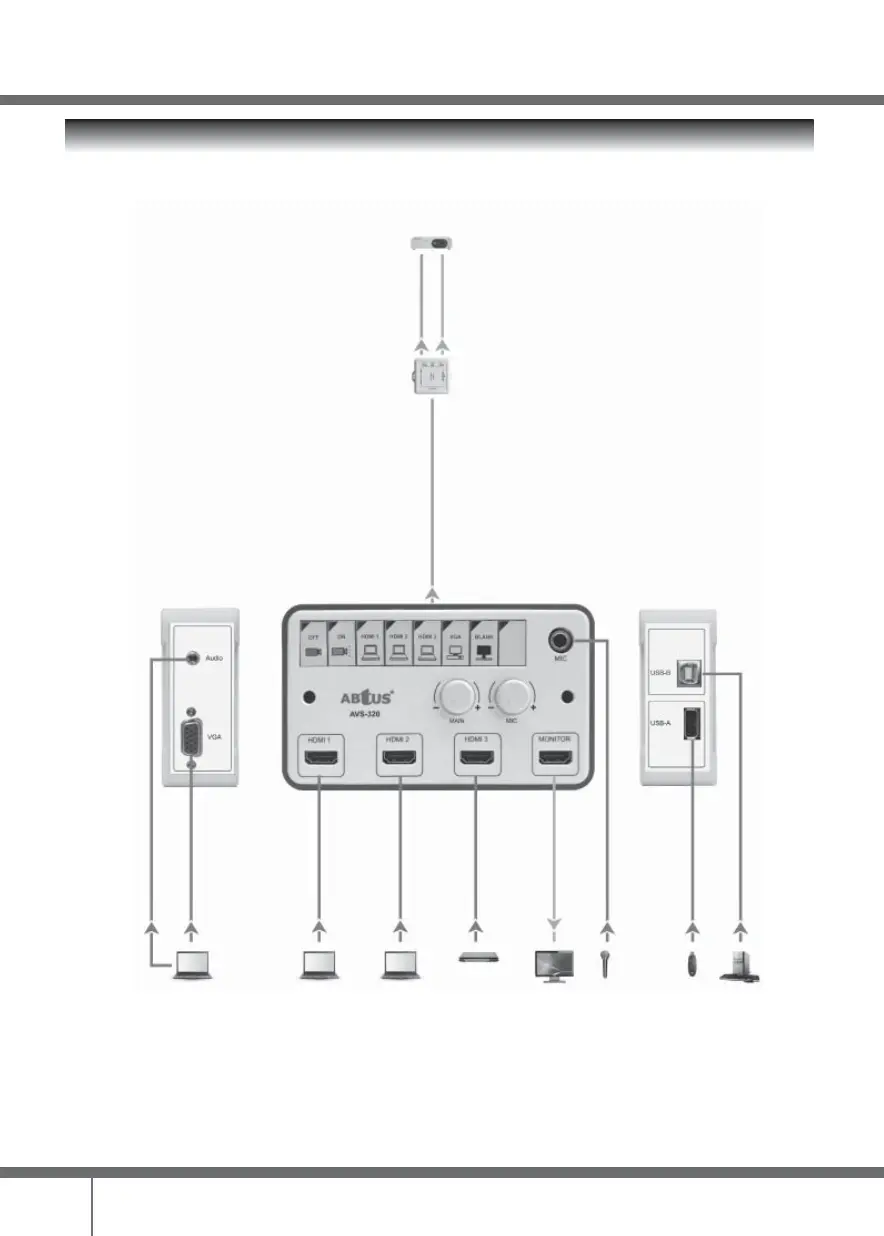

SYSTEM DIAGRAM
3.5mm Audio In
VGA In
USB-A In USB-B In
Single CAT-5e/6/7
RS-232 HDMI
Monitor Out 6.3mm Mic In
up to
20 meter using CAT-5e
or up to 50m using
CAT-6A
Receiver
CAT-HD11R/A2
HDMI 1 In HDMI 2 In HDMI 3 In
