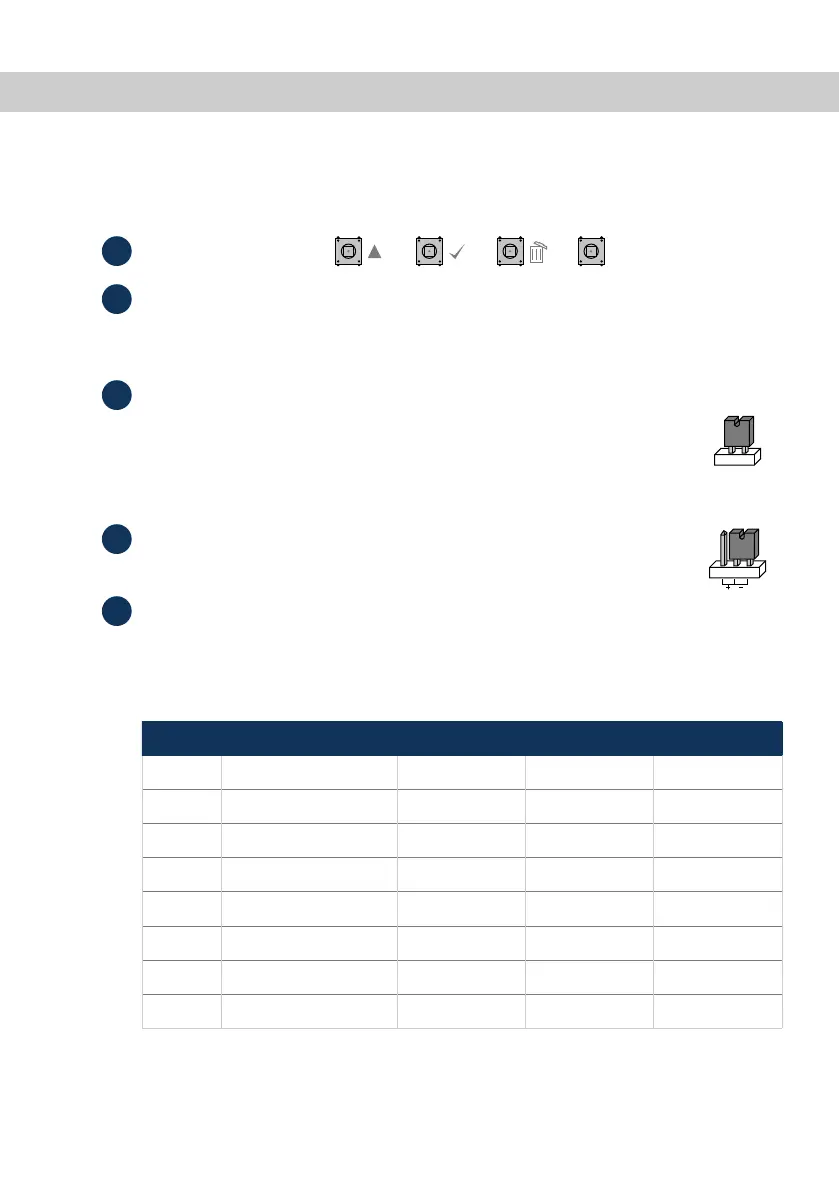

Programming keys
Tamper switch
A cover tamper switch (B) and a wall tamper switch protect the control panel
from unauthorised opening and removal from the wall.
CON1
CON1 jumper connection “FIT DISABLE TAMP” (C)
If you set the jumper on both contacts, you deactivate the wall
removal contact.
(This may be helpful during programming.)
CON2
CON2 jumper (D) must be in the “-” position (factory setting).
DIP switch SW6
Switch positions 4/5/7/8 must remain in the factory settings to guarantee
functioning.
A
B
C
D
E
Switch Options Factory settings “OFF” position “ON” position
1 Supervision ON O On
2 Supervision time ON Long 3 h Short 20 min
3 Jamming detection ON O On
4 OFF
5 ON
6 LED mode OFF Display on Display o
7 OFF
8 Acoustic signalling ON O On
SELECT ESC/DEL
SW4
SET
CON2
VSEL
