Principios de funcionamiento y características de rendimiento
10 ES
Indicador de estado LED
Los cuatro LEDs de estado de la unidad de mando inalámbrica indican el estado de
las cuatro particiones. Los posibles estados se señalizan de la siguiente manera:
ROJO
Activado
ROJO
-
intermitente
-
Transmisión al sistema de
alarma
VERDE
Desactivado
VERDE
-
intermitente
-
Esperando confirmación
(los 4 LEDs a la vez)
AMARI
LLO
Activado internamente
AMARI
LLO
-
intermitente
-
Avería
(separado para cada partición)
Señalizador piezoeléctrico
Conexión de 12 V para la
fuente de alimentación
Contacto antisabotaje

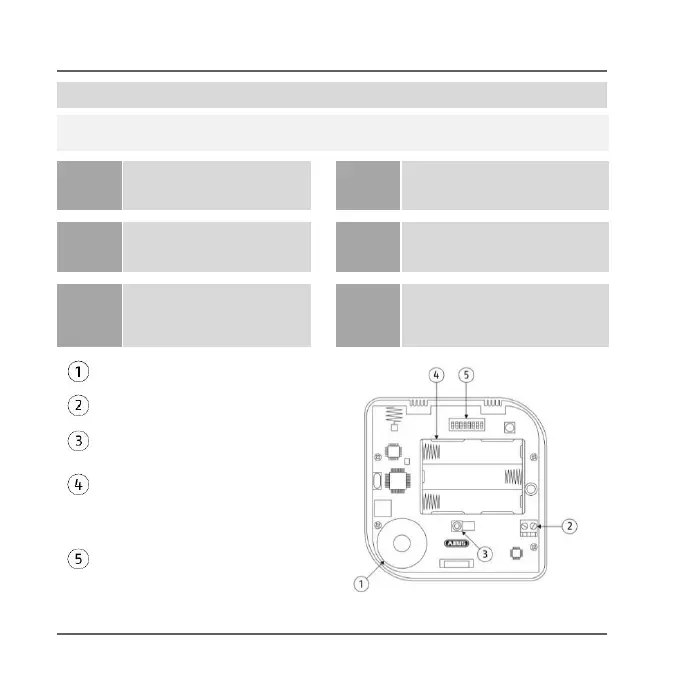

Compartimento de pilas
(3 x pilas alcalinas AA)
Interruptor DIP
