LED status display
The control panel’s four status LEDs indicate the statuses of the four partitions. The
different statuses are indicated as follows:
RED
 Armed
RED
-flashing-
 Transmission to the alarm
system
GREEN
 Deactivated
GREEN
-flashing-
 Wait for confirmation
(all 4 LEDs simultaneously)
YELLO
W
 Internally armed
YELLO
W
-flashing-
 Interference
(separate for each partition)

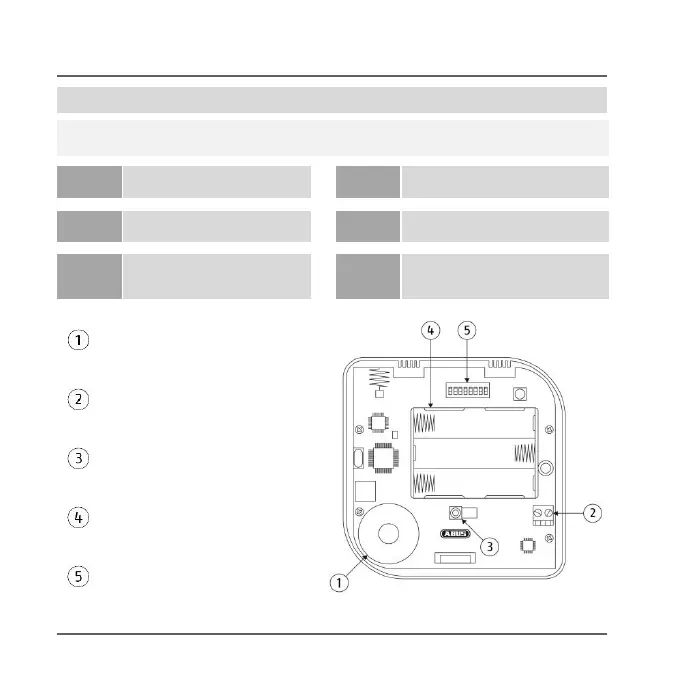

Piezo sounder
12 V connection for power
supply unit
Tamper contact
Battery compartment
(3 AA alkaline batteries)
DIP switch
