Principe de fonctionnement et caractéristiques
10 FR
LED d’affichage d’état
Les quatre LED d’état de l’élément de commande signalent l’état des quatre
partitions. Les états possibles sont signalés de la manière suivante :
ROUG
E
Activé
ROUG
E
-clignotant-
Transmission au système
d’alarme
VERT
Désactivé
VERT
-clignotant-
Attente de confirmation
(les 4 LED simultanément)
JAUNE
Activé en interne
JAUNE
-clignotant-
Dysfonctionnement
(séparément pour chaque partition)

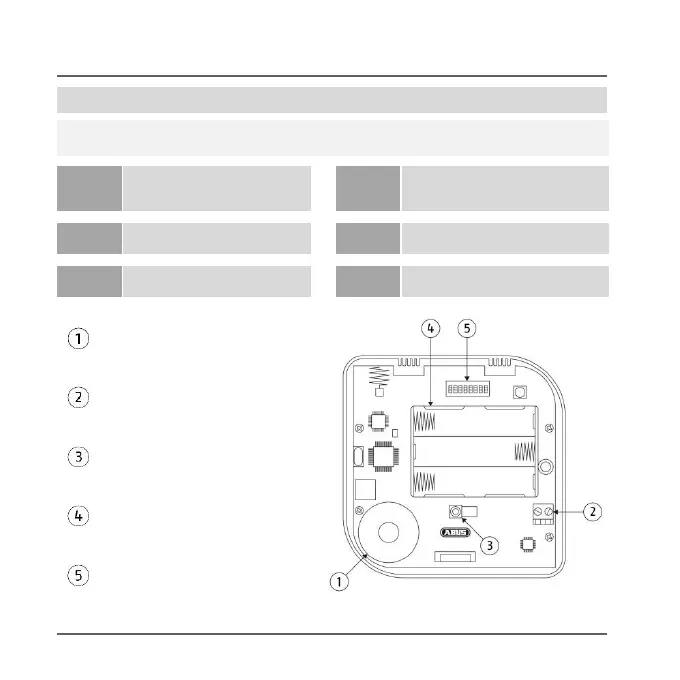

Avertisseur piezo
Raccordement 12 V pour le
bloc d’alimentation
Contact antisabotage
Compartiment à piles
(3 piles alcalines AA)
Commutateur DIP
