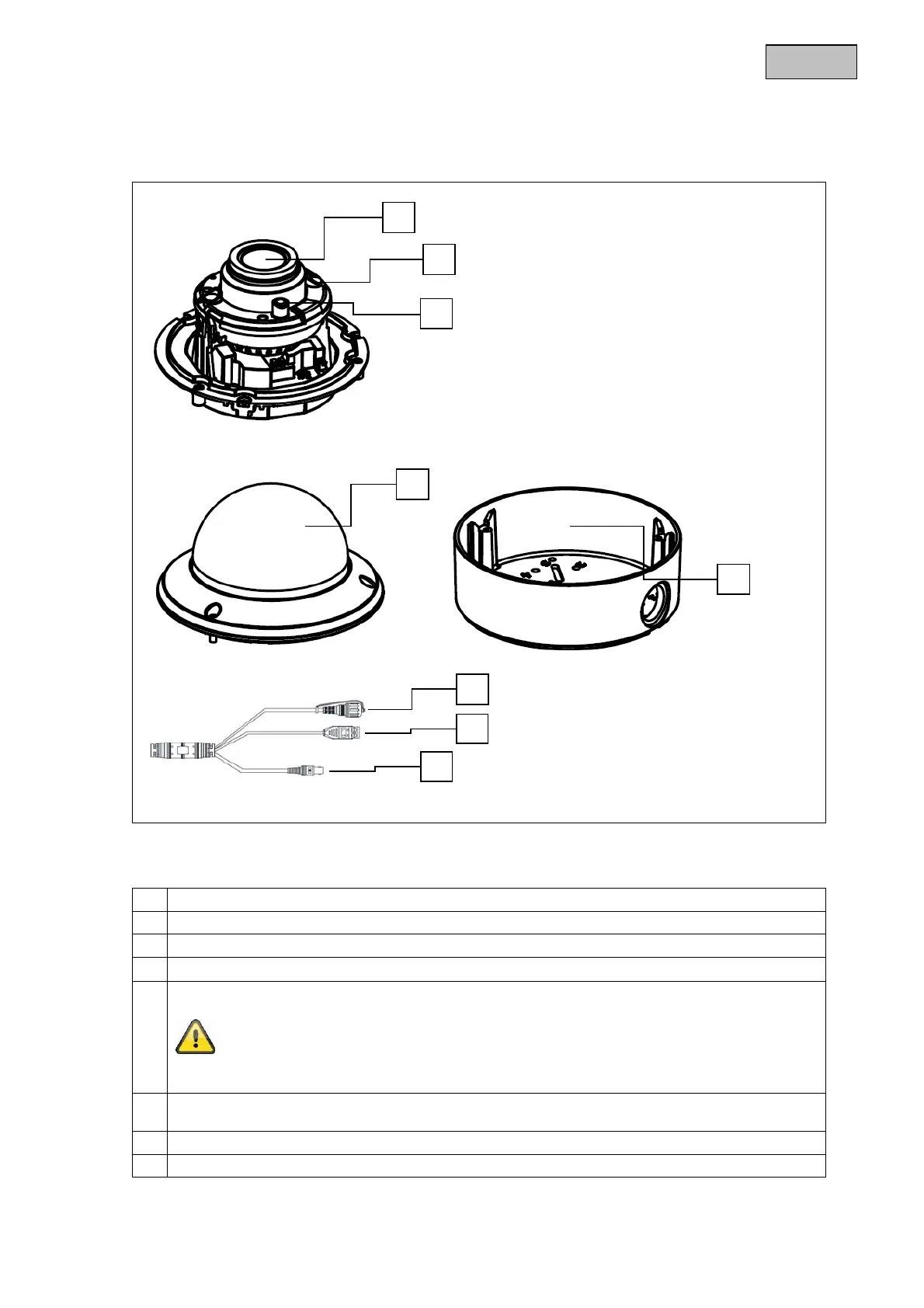

4. Camera description
5.
HDCC72551
6.
1 Camera module with lens
2 Infrared LED (2, to the left and right of the lens)
3 Photo sensor for day/night switching
4 Dome
5 Installation adapter for surface mounting
Note: All connections that are placed inside the installation adapter must be protected
against moisture (if necessary, use of insulating tape or a cable sleeve)
6 Button for switching between different video formats:
TVI / AHD / CVI / CVBS
(
keep the button pressed for lon
g
er than 3 seconds
)
7 Power supply (12 VDC or 24 VAC, 2-pin connection, polarity does not need to be observed)
8 HD-TVI / CVI / AHD / CVBS video output (BNC)
1
2
3
6
4
5
7
8
