20
English

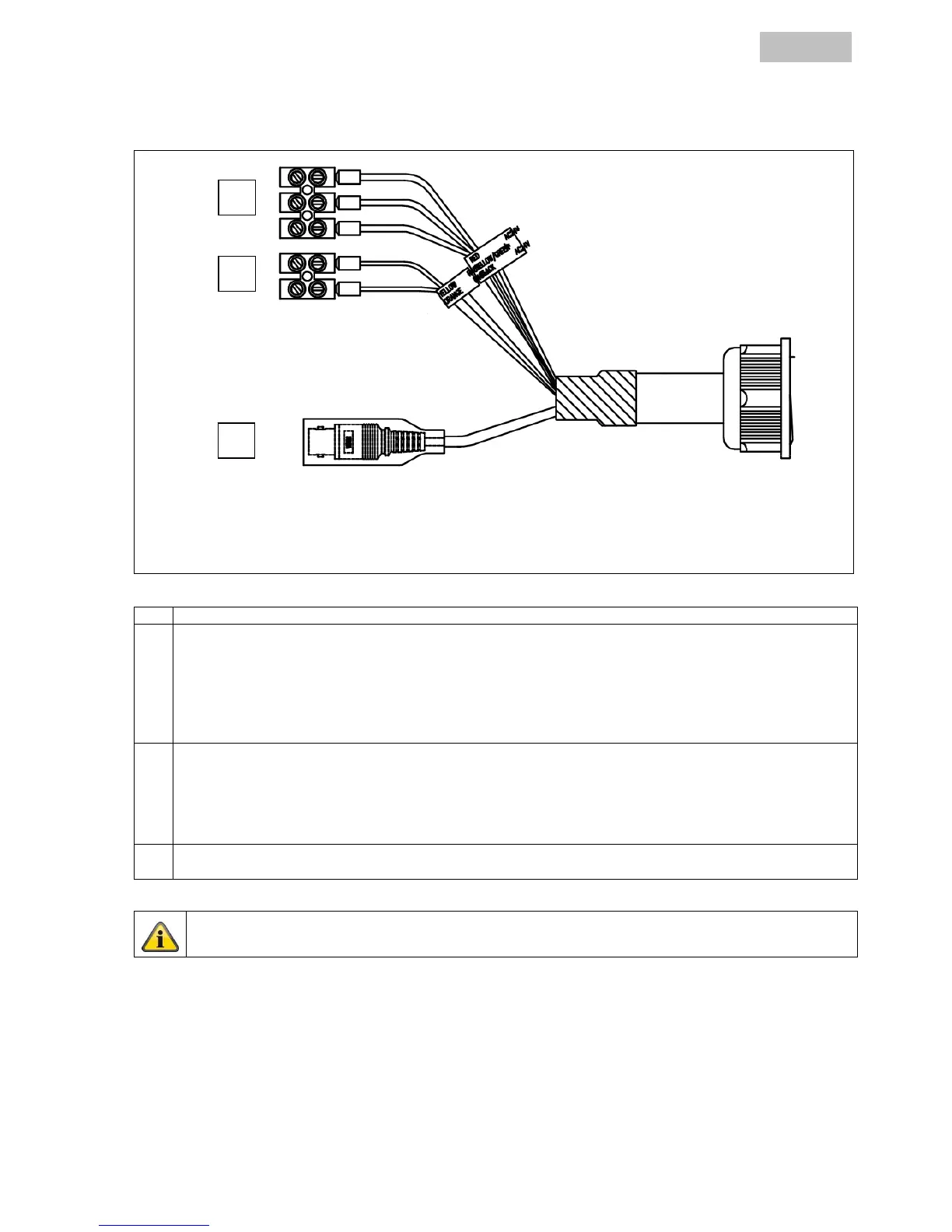

3. Description of the connections
No Description
1
Power supply, 24 V AC
Wiring:
Black: 24 V AC
Yellow/green: Earth
Red: 24 V AC
2
RS-485 Control line
Wiring:
Yellow: RS-485 Minus
Orange: RS-485 Plus
3
HD-TVI video output (BNC)
Ensure that the camera is not connected to the power supply during installation.
2
1
3
