5.2 Corner mount installation (TVAC31231)

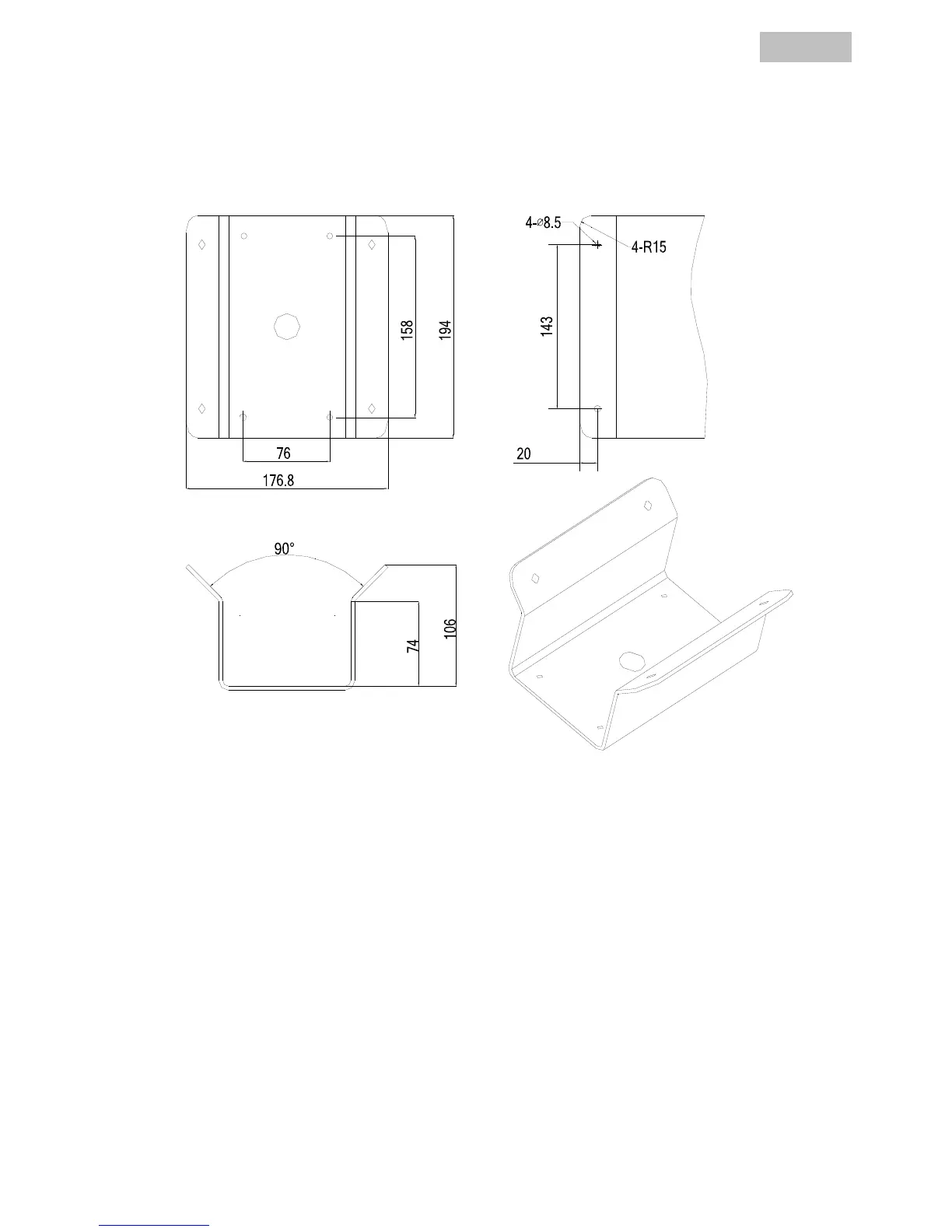

5.2.1 Dimensions
TVAC31231
5.2.2 Installation
Before starting:
The wall must be thick enough to allow the straddling dowels to be fitted.
Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome and
its mount.
1. Drill four holes in the wall which correspond to the dimensions, and then push suitable straddling
dowels into the wall.
2. Pull the connecting cable through the middle hole in the corner mount.
3. Position the corner mount in the corner.
4. Fasten the adapter using the washers and the nuts.
