Abus IPCS84551 - Alarm Input; Audio Output; Audio Input

30

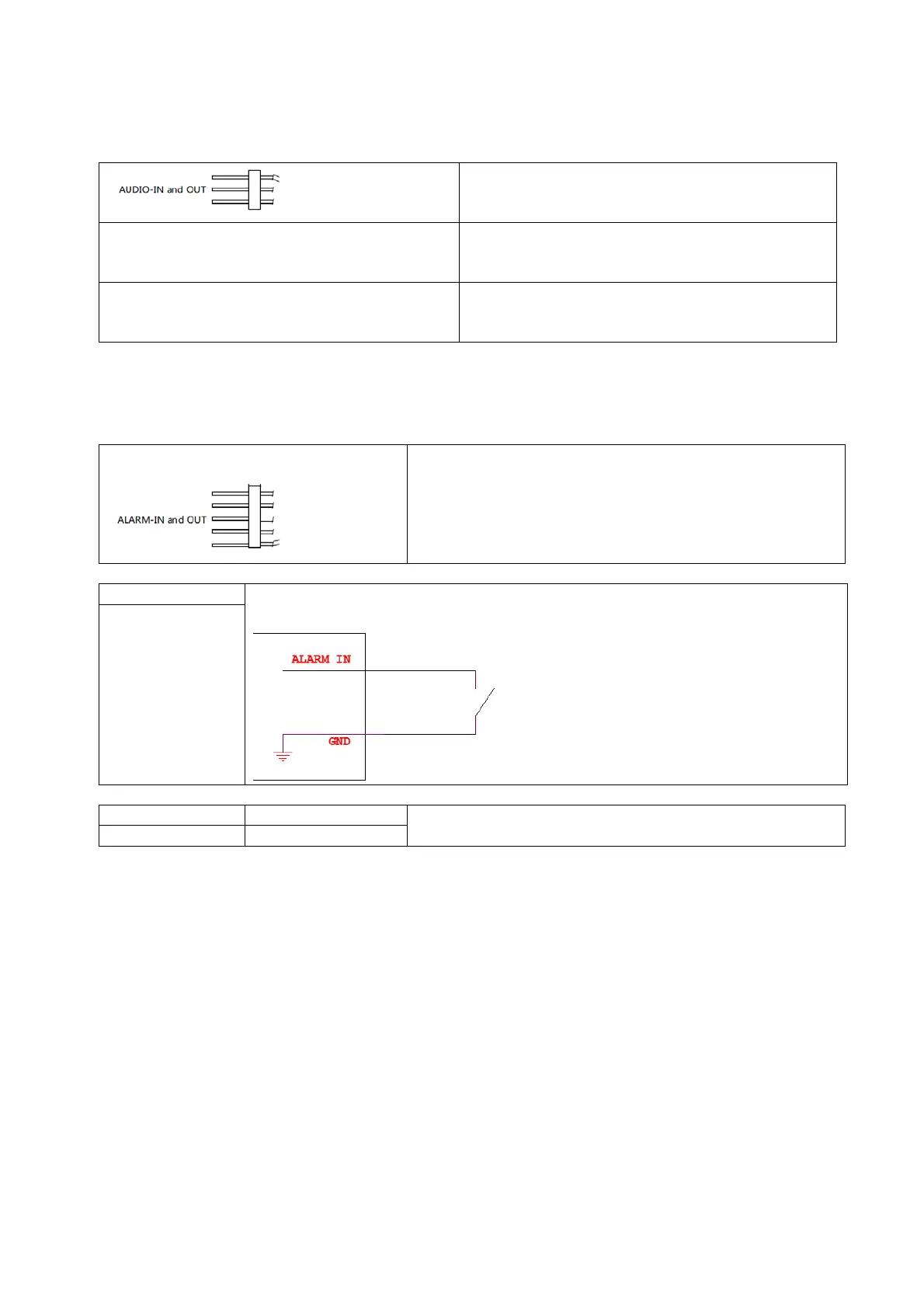

3.4 Audio output / Audio input
3.5 Alarm input
Yellow/Blue: Alarm input 1
Yellow/Orange: Alarm input 2
White/Red: Alarm output 1 (Pin A)
White/Black: Alarm output 1 (Pin B)
Yellow/Black: Alarm Ground
A
larm input Bridge between “Alarm input x” and “Alarm Ground”
A
larm output
A
LARM Out Pin
A
Max. 30 VDC @ 1 A
A
LARM Out Pin B
Pink: Audio input
Black: GND
Purple:
A
udio output
Audio input Mikrofon / Line
Impedance 10 kOhm
Voltage 2,0 Vpp
Audio output 3,5 mm phone jack
Impedance 600 Ohm
Voltage 2,0 Vpp
