Before starting:
The wall must be thick enough to allow the straddling dowels to be fitted.
Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome
and its mount.
1. Drill four holes in the wall which correspond to the dimensions, and then push suitable
straddling dowels into the wall.

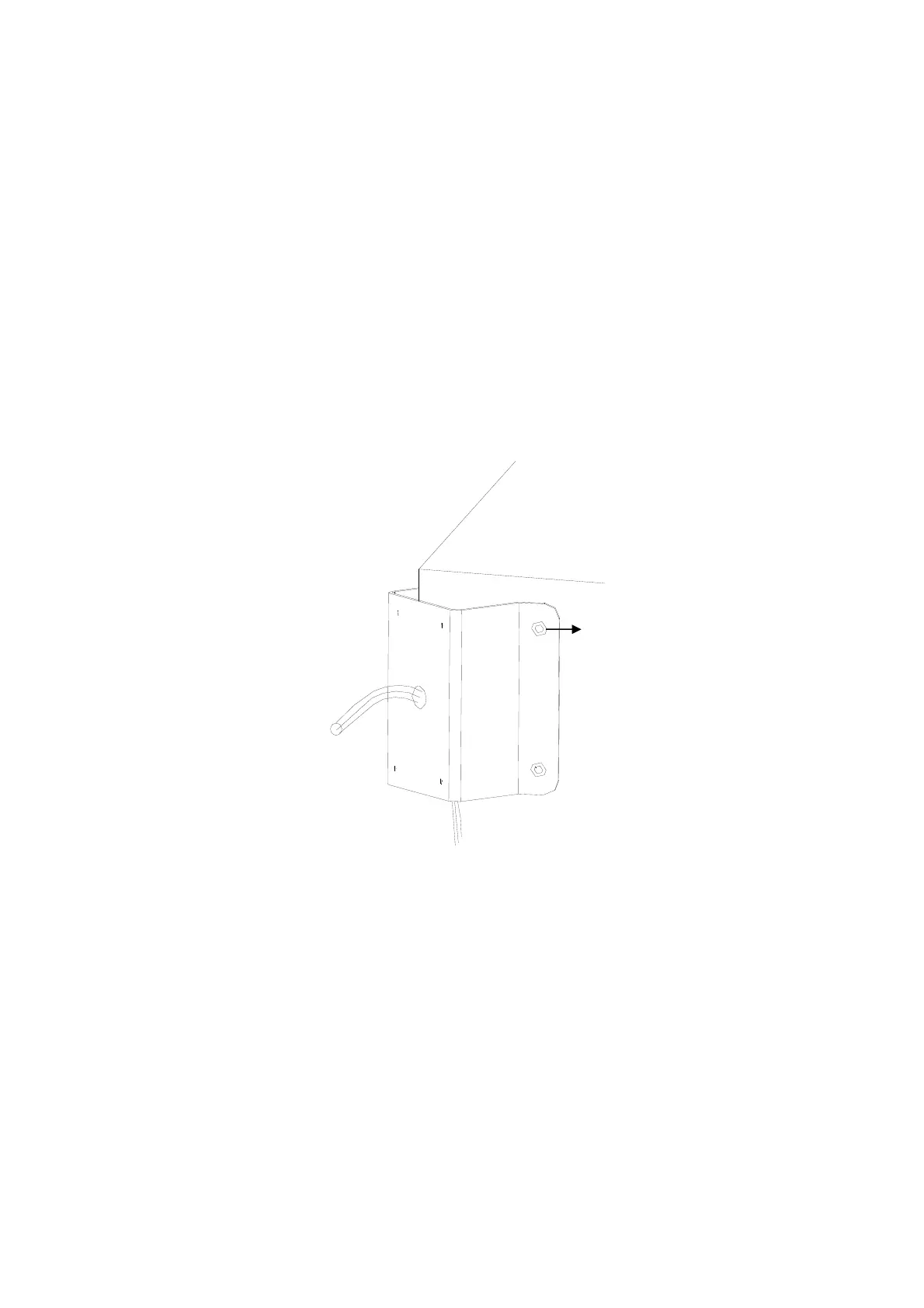

2. Pull the connecting cable through the middle hole in the corner mount.
3. Position the corner mount in the corner.
4. Fasten the adapter using the washers and the nuts.
5. Attach the seal between the corner mount and the wall mount.
6. Screw the wall mount into place using the four threaded screws and spring washer to help you.
Washer and nut
