4.3 Cable connections
To connect the video RCA plug to a BNC input or output on a camera, monitor or recorder, attach the
BNC-RCA adapter to the yellow RCA plug.

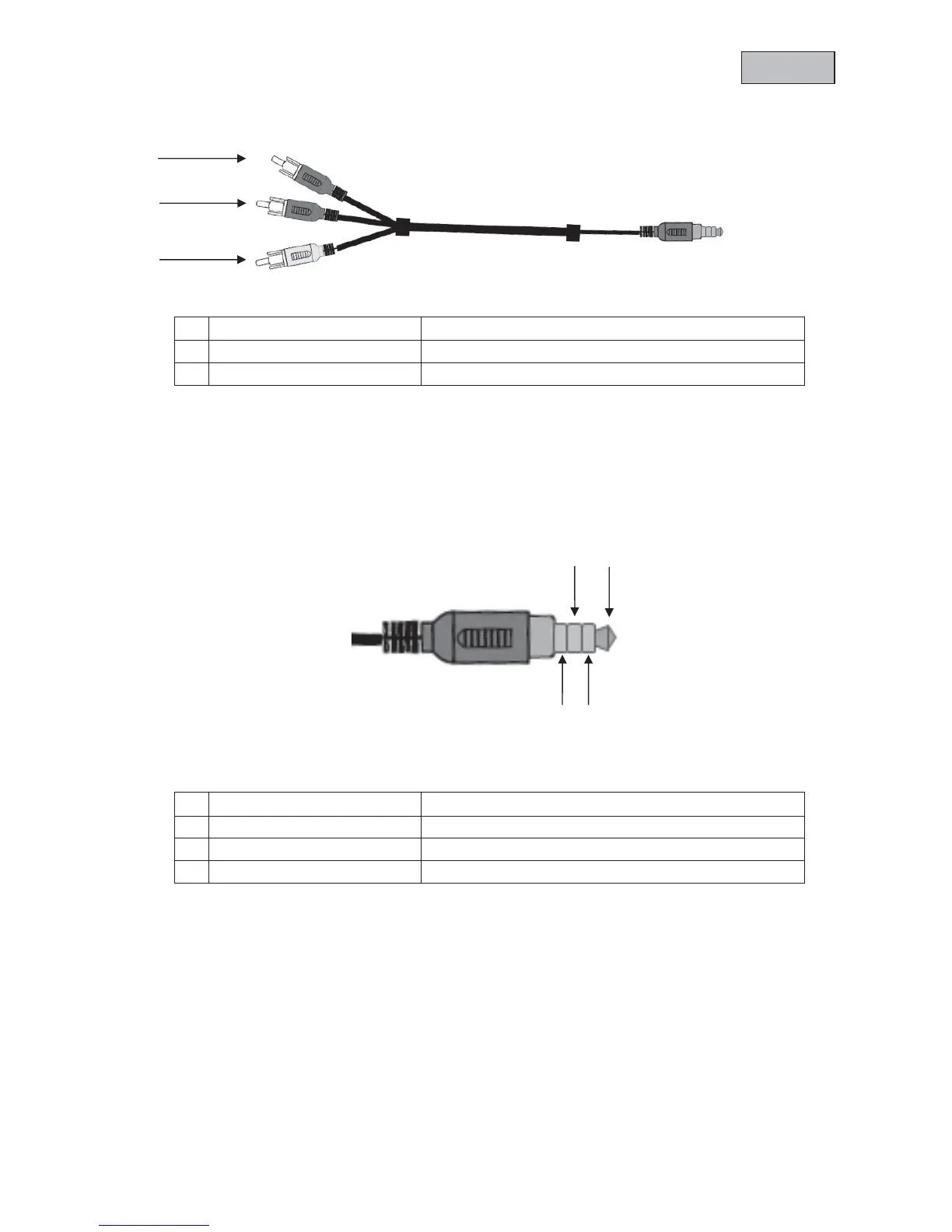

4.4 Video/audio signals on the jack plug
c
Yellow RCA connector (video) Connection for transmitting the video signal
N
Red RCA connector (audio) Connection for transmitting the audio signal
O
White RCA connector (audio) Connection for transmitting the audio signal
c
Ground Common ground connection
N
Audio channel 1 Audio signal
O
Video signal Video signal
P
Audio channel 2 Audio signal
O
c
N
O
c
N
P
