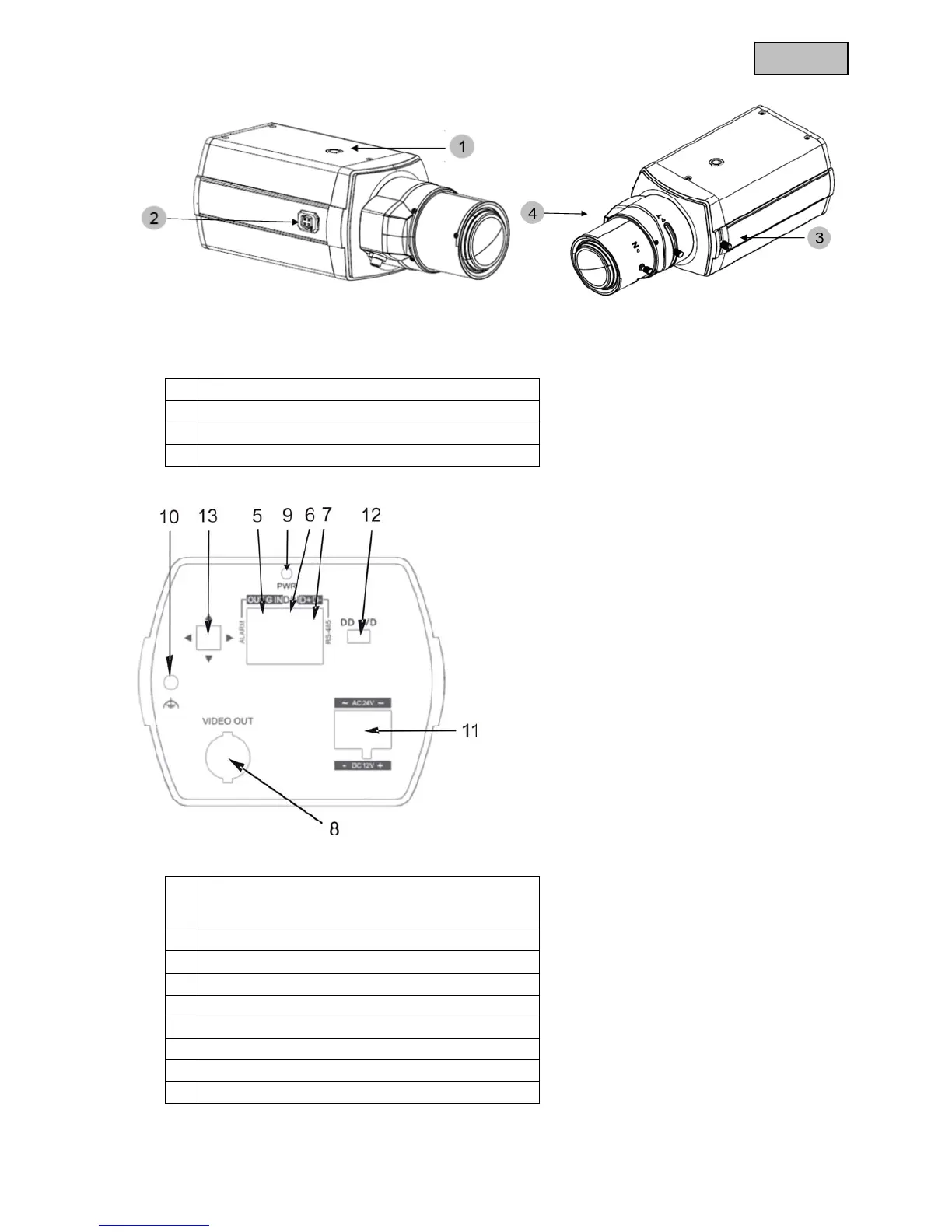

4. Camera description
1 Fastening base for camera mount
2 Lens connection (auto-iris interface)
3 Back-focus setting
4 Lens (not supplied)
5 Switching input (jumper to earth), switching output
(open collector, 5 V DC, max. 200 mA), earth
connection
6 Day/night switching
7 RS485 interface
8 Video output
9 Status LED (active when power is on)
10 Earth
11 12 V DC / 24 V AC power connection
12 DD/VD lens type switching
13 OSD menu buttons
