STEP 2
Insert the six (C) poles into the six (B) poles.
TENT SETUP
CLOUDLAB 816 / 894
STEP 1

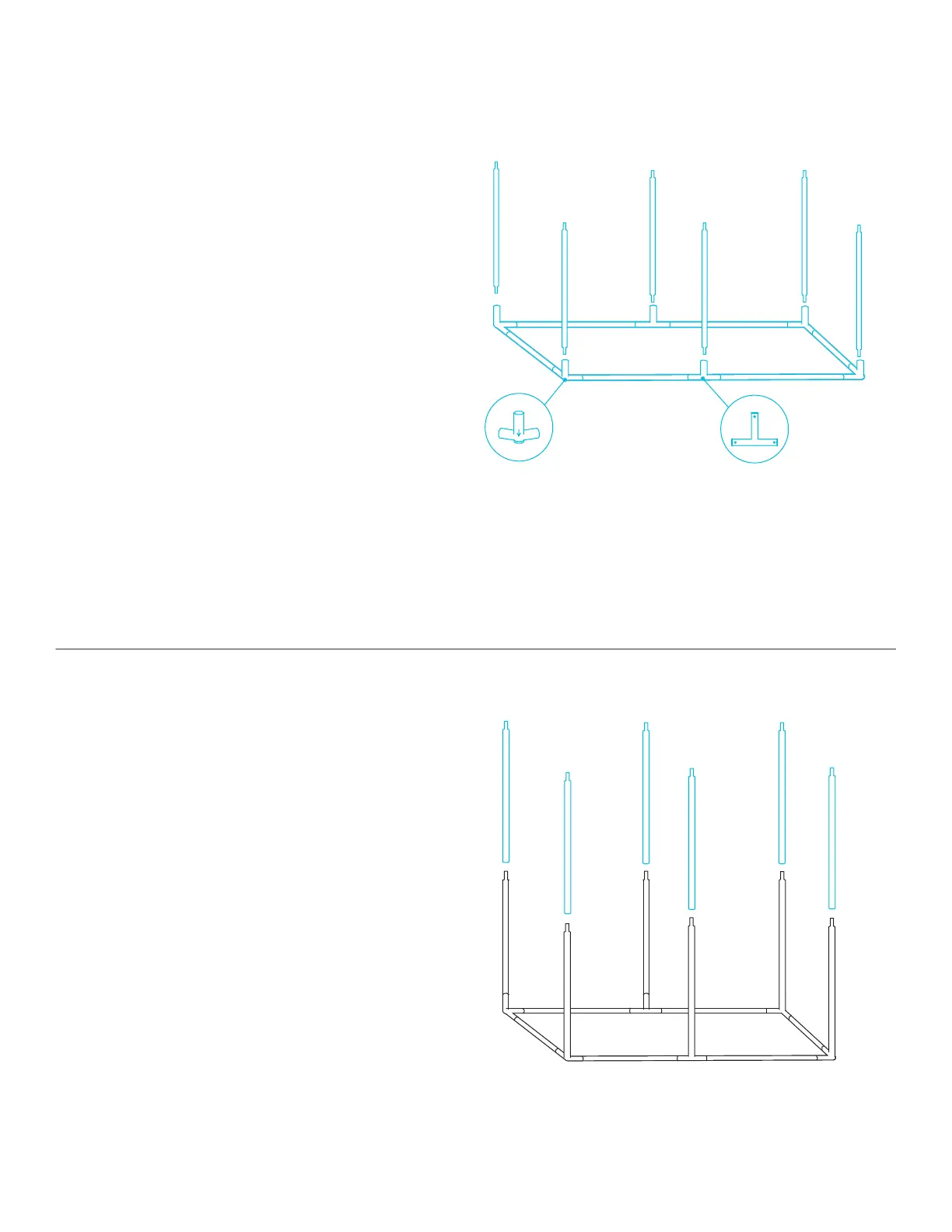

Insert six (A) poles into the floor end of
the corner (D1) pieces and 3-way (D2)
connectors to create the base.
Insert the six (B) poles into the corner (D1)
pieces and the two 3-way (D2) connectors.
When assembling, make sure the feet of
each corner (D1) piece faces the floor with
the arrow facing down.
A
A
D1 D2
A A
A
A
B
B
B
B
B
B
C
C
C
C
C
C
B
B
B
B
B
B
