AC Infinity CLOUDLAB Series - Page 16

16
STEP 4
Unzip the tent so that it lays flat.
Floor

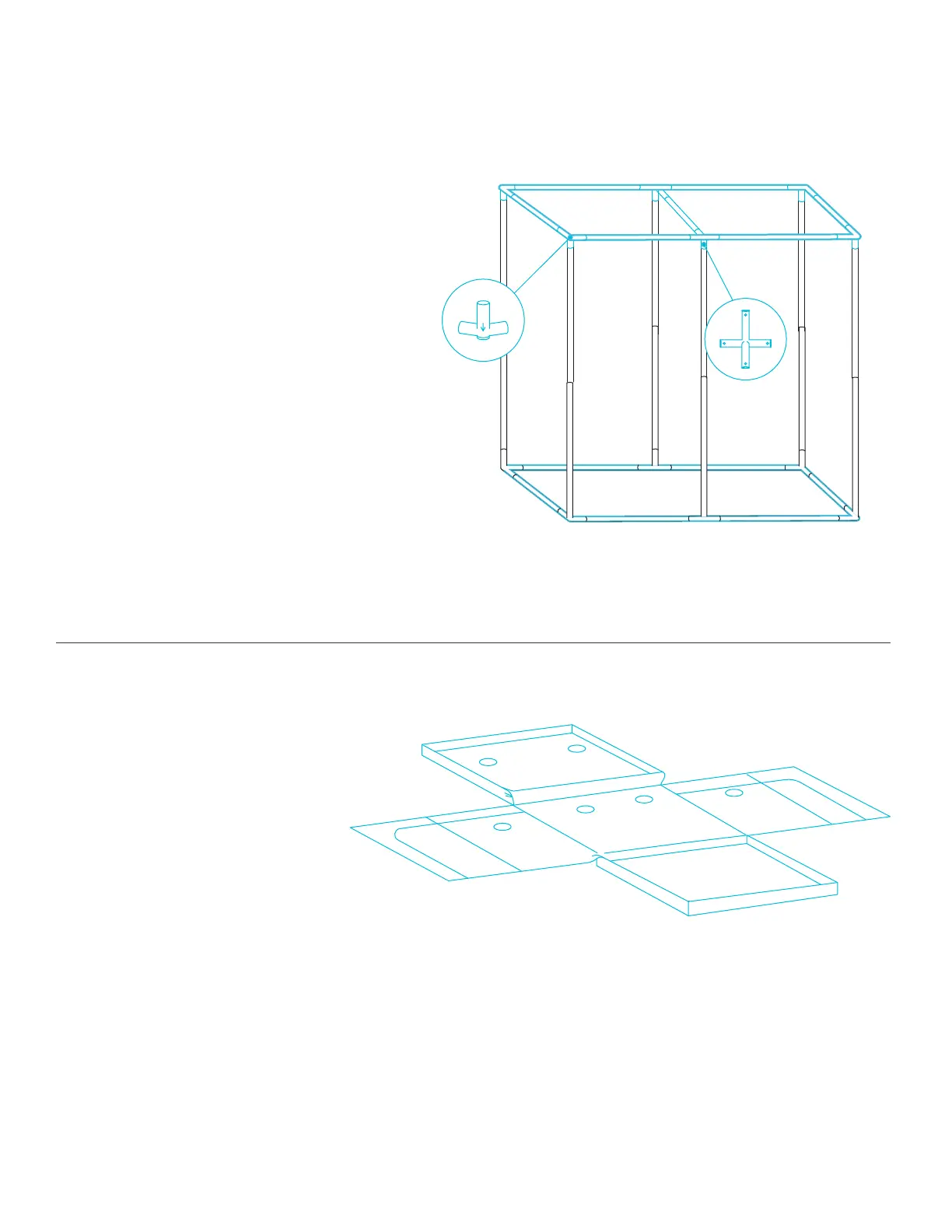

STEP 3
Insert four corner (D1) pieces into the corner
(C) poles and the two 4-way (D3) connectors
into the middle (C) poles.
Insert six (A) poles in between the corner
(D1) pieces and 4-way (D3) connectors.
TENT SETUP
CLOUDLAB 816 / 894
A
D1
D3
A
A
A A
A
B
C
