AC Infinity CLOUDLAB Series - Dual-Chamber Cloudlab Models Assembly

23
TENT SETUP
CLOUDLAB 632D / 743D / 864D

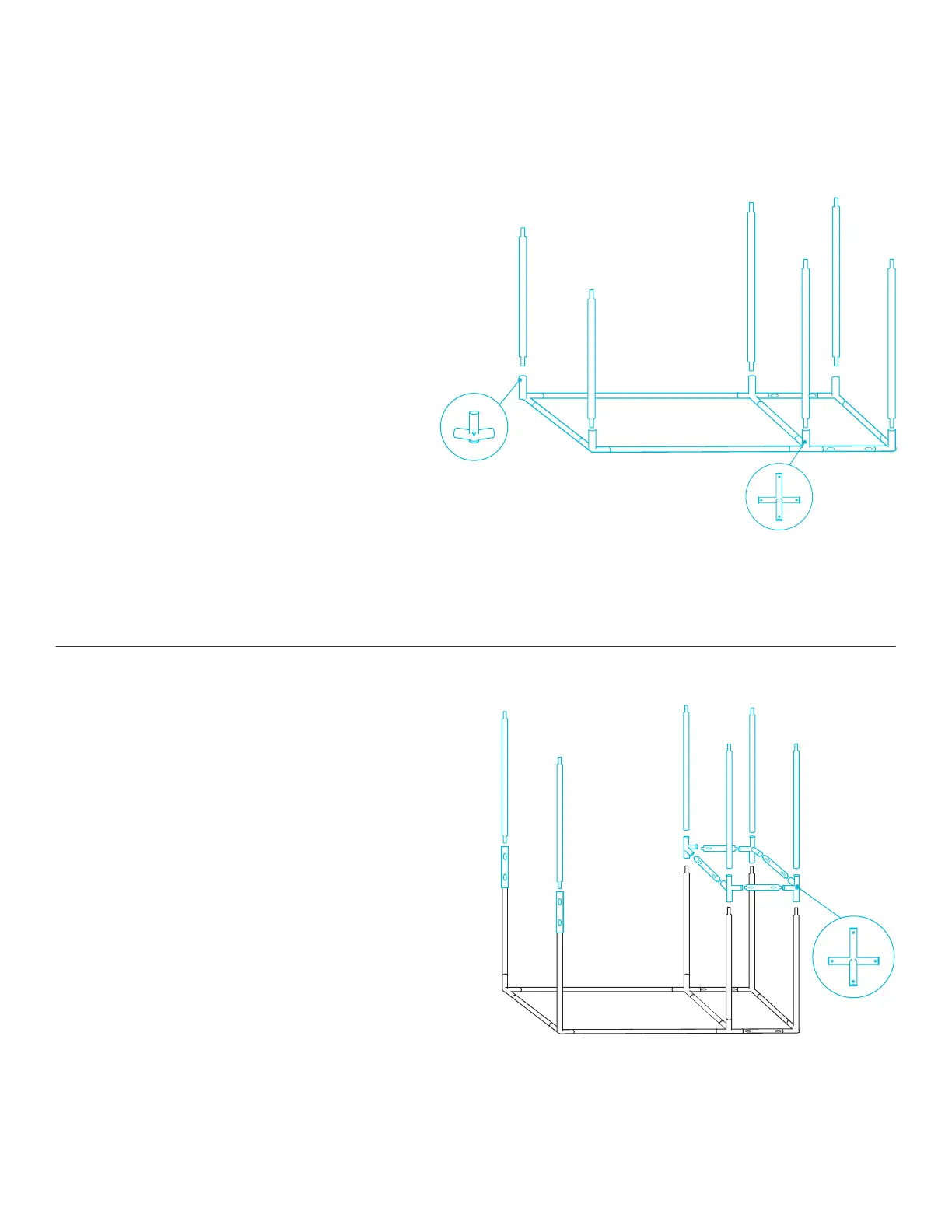

STEP 2
Insert four 4-way (D3) connectors into the
four (A1/A) poles, connecting two (A2) and
(C) poles between the connectors as shown
here. Insert the two (B) pieces into the
remaining two (A1/A) poles.
Insert six (A1/A) poles into the four 4-way
(D3) connectors and two (B) pieces.
STEP 1
Insert four (A2/A) poles in between two
corner (D1) pieces and two 4-way (D3)
connectors. Then insert two (C) poles to the
two 4-way (D3) connectors.
Insert an (A2/A) pole to two corner (D1)
pieces and connect them to the two (C)
poles to complete the base.
Insert six (A1/A) poles into the corner (D1)
pieces and the two 4-way (D3) connectors.
When assembling, make sure the feet of
each corner piece faces the floor with the
arrow facing down.
A2/A
A2/A
A2/A
A2/A
A1/A
A1/A
A1/A
A1/A
A2/A
C
C
A1/A
A1/A
D3
A1/A
A1/A
B
B
A2
A2
C
C
D3
A1/A
A1/A
A1/A
A1/A
*(A) poles apply to model AC-CBA743D only
D1
