24
TENT SETUP
CLOUDLAB 632D / 743D / 864D
STEP 4
Add a rack (G) support beam onto the shelf.

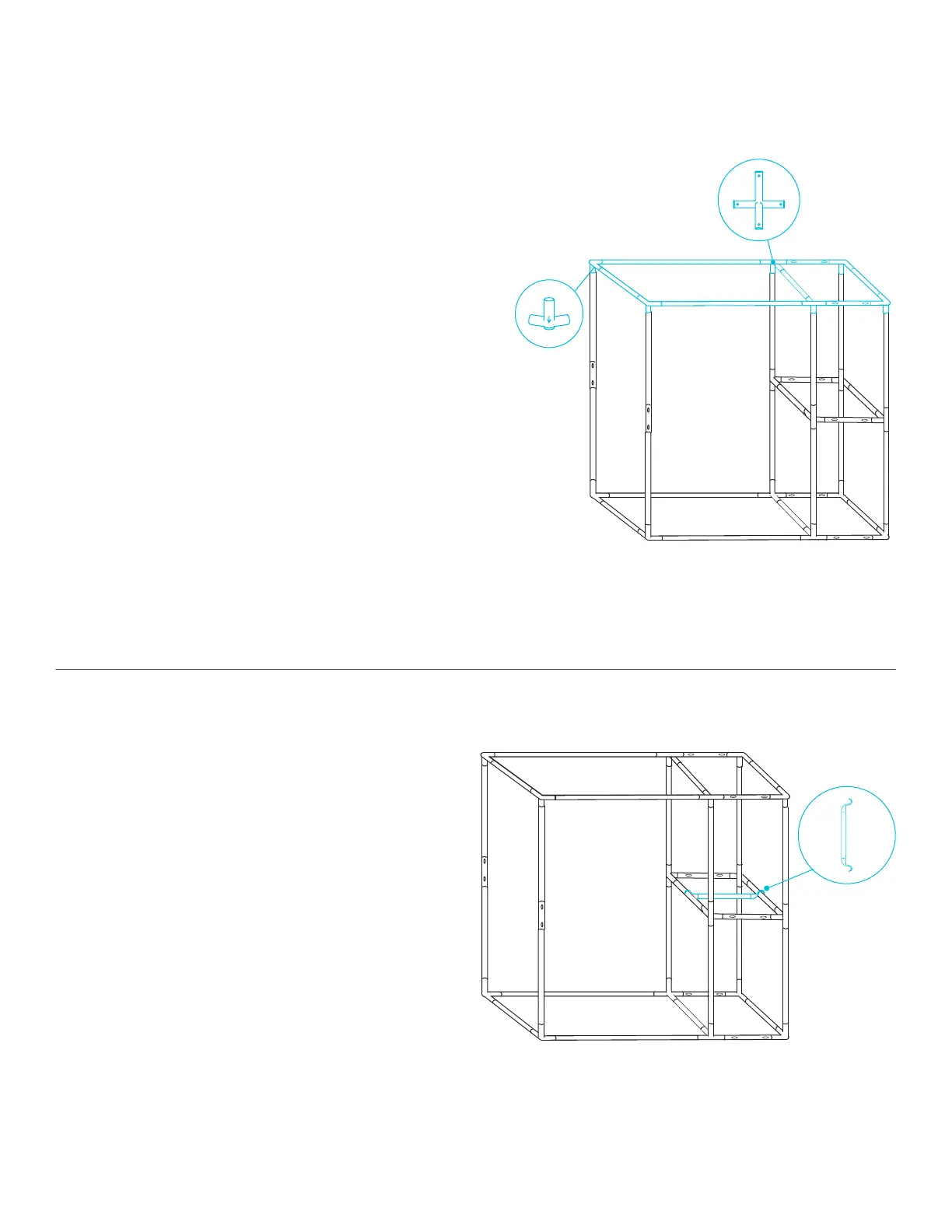

STEP 3
Insert the remaining four corner (D1) pieces
and two 4-way (D3) connectors into the
poles.
Insert the remaining (A2/A) poles in between
the connectors as shown here.
A2/A
A2/A
A2/A C
A2
A2
C
G
D3
D1
To Next Page
