AC STAG-4 QBOX PLUS User Manual

AC S.A. all rights reserved. Under penalty of law and/or liability claims it is forbidden to copy, publish, distribute, make available and/or use in any way all or any part of information contained
within this document, in particular photographs, drawings, illustrations, trademarks, etc
5
1.2. Layout diagram STAG-4 QBOX PLUS
Fig. 2 STAG-4 QBOX PLUS controller installation layout diagram.

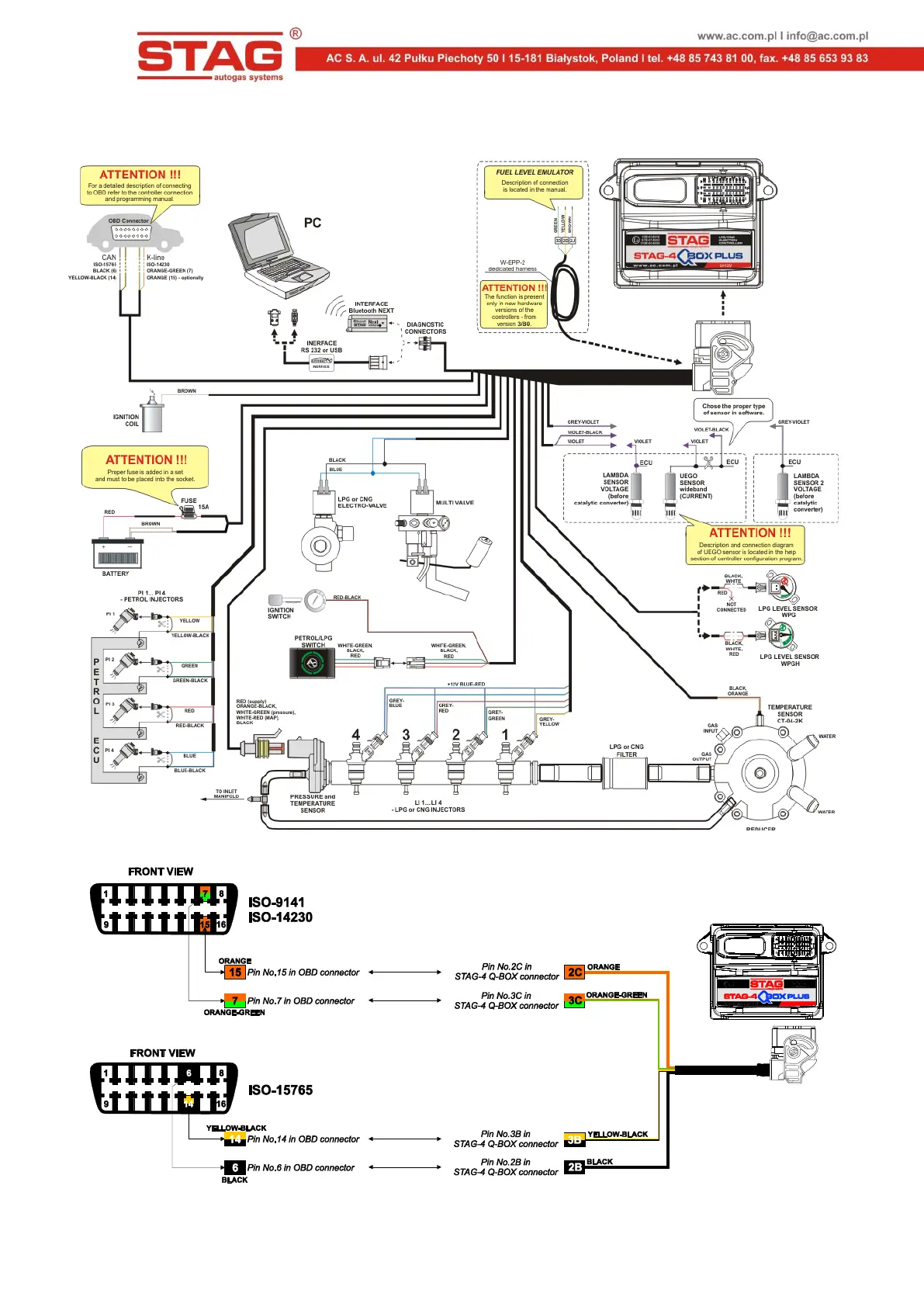

Fig. 3 Wiring diagram for STAG-4 QBOX / QNEXT / QMAX PLUS connection to OBD interface.

AC STAG-4 QBOX PLUS Specifications

General

Brand	AC
Model	STAG-4 QBOX PLUS
Category	Controller
Language	English
