ACCUR8 DWS7100 - Page 11

10

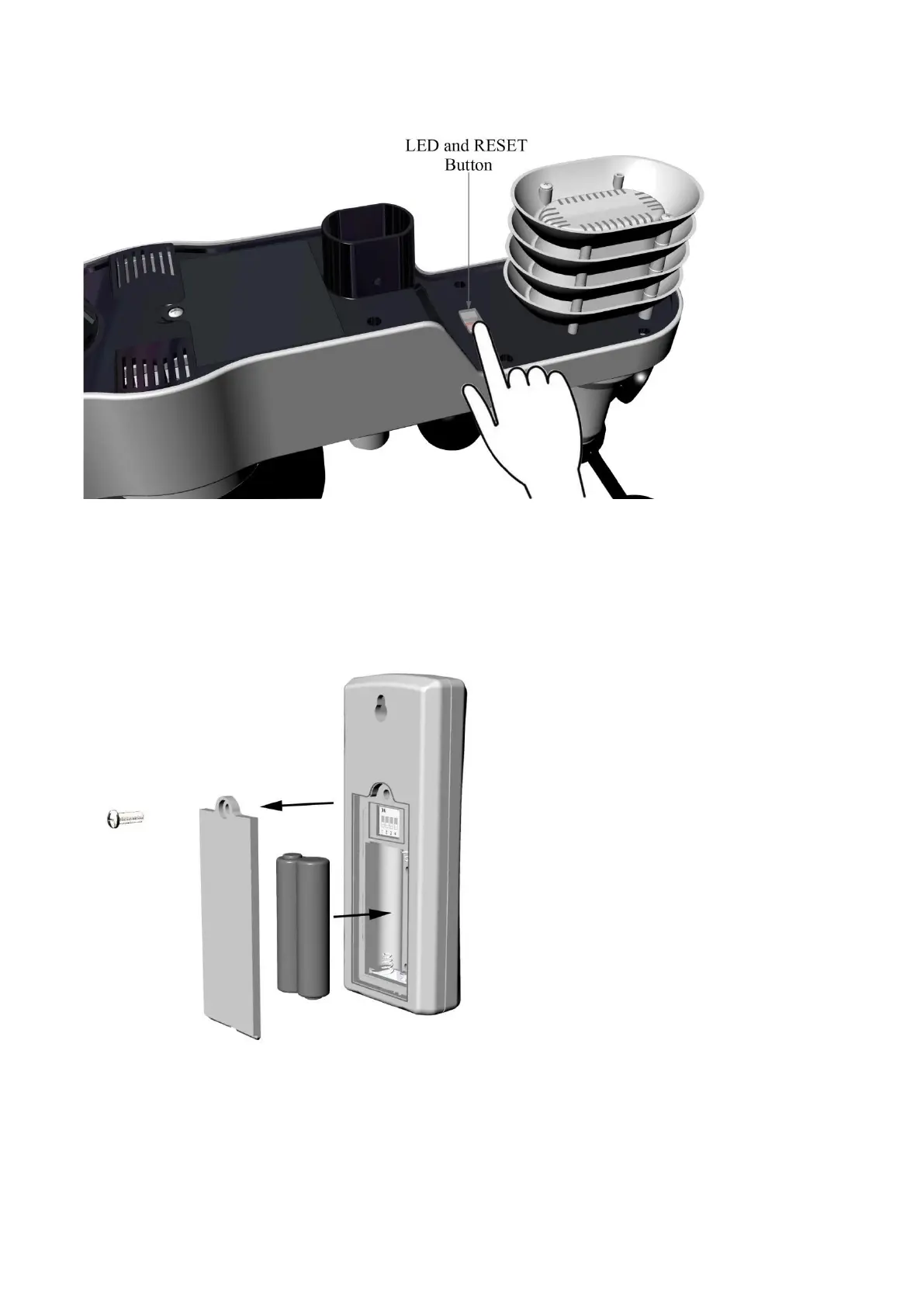

Figure 6
Setting up the thermo-hygrometer transmitter. Remove the battery door on the back of the sensor by
removing the set screw, as shown in Figure 7.
Figure 7
1. BEFORE inserting the batteries, locate the dip switches inside the battery compartment of the
transmitter.
Figure 8 displays all four switches in the OFF position (factory default setting).
