Accutrol AccuValve AVT4000 Series User Manual

Installation & Operation Manual - Model AVT4000
Contents of this Manual are Subject to Change Without Notification Page 5

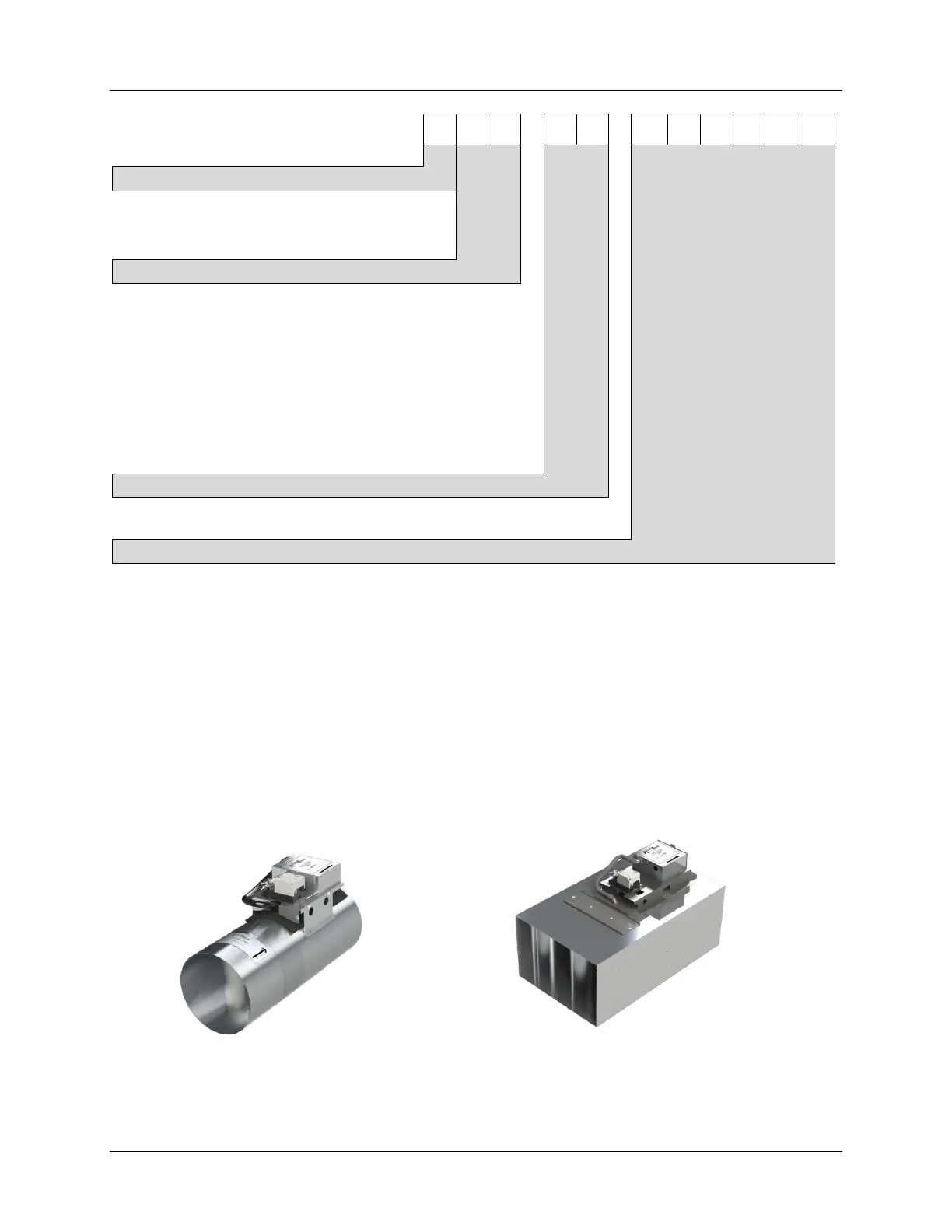

1.2 Model Code
A V T 4
-
-
VALVE MATERIAL
2 = 304ss, 20 Ga.
3 = 316ss, 20 Ga.
4 = Aluminum, 16 Ga.
VALVE SIZE
06 = 6" Diameter Round
08 = 8" Diameter Round
10 = 10" Diameter Round
12 = 12" Diameter Round
14 = 14" Diameter Round
18 = 12" h x 18" w Rectangular
24 = 12" h x 24" w Rectangular
ACTUATOR
17 = Fail Last Position, 10-sec full cycle 2-10v
OPTIONS
BLANK = No Options
B = BACnet
F = Flanges
I = Insulation
S = Tight Shut-off (All 6” valves have blade seals, therefore –S option is not available on 06)
W = Wireless Bluetooth
1.3 Valve Types
Round AccuValve
Sizes 06, 08, 10, 12 and 14
Rectangular AccuValve
Sizes 18 and 24

Accutrol AccuValve AVT4000 Series Specifications

General

Brand	Accutrol
Model	AccuValve AVT4000 Series
Category	Control Unit
Language	English
