Installation & Operation Manual - Model AVT6000
Page C4

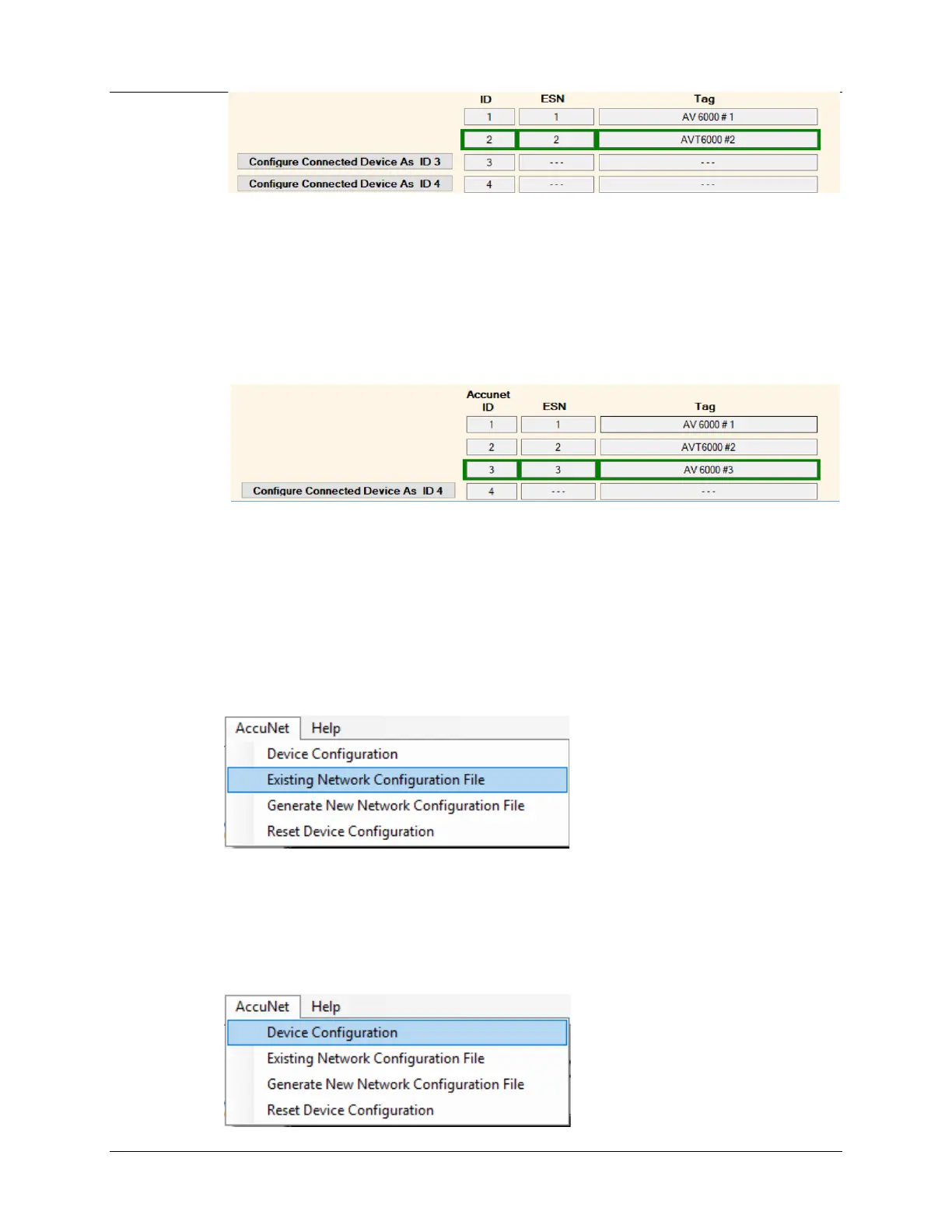

The utility will now assign a unique network address to this AccuNet Module and
AccuValve TAG name will be assigned as the TAG name of this AccuNet Module.
3-3d. Close Insight and disconnect from the AccuValve.
3-4. Configure the fourth AccuValve in the Network.
3-4a. Connect to the fourth AccuValve on the network and open AccuValve Insight.
3-4b. From the AccuNet Menu, select Existing Network Configuration File and open the
same file that was created in Step 2.
3-4c. Select the “Configure Connected Device AS ID 4”
The utility will now assign a unique network address to this AccuNet Module and
AccuValve TAG name will be assigned as the TAG name of this AccuNet Module.
3-4d. If this device is the Totalizer, continue to Step 4b. If this device is not the
Totalizer, Close Insight and disconnect from the AccuValve.
Step 4: Configure the Totalizer
4a. Connect to the AccuValve that is the network Totalizer and open AccuValve
Insight.
4b. From the AccuNet Menu, select Existing Network Configuration File and open the
same file that was created in Step2.
There should only be one active button labeled “Click Here to Make this the
Totalizer”. Selecting this button will configure this AccuValve as the Totalizer.
Step 5: Confirm AccuNet Network is Activated
5a. Connect the pc to the Totalizer AccuValve.
5b. From the AccuNet Menu, select Device Configuration List.
To Next Page
