Accutrol AccuValve AVT6000 User Manual

Installation & Operation Manual - Model AVT6000
Contents of this Manual are Subject to Change Without Notification Page 5

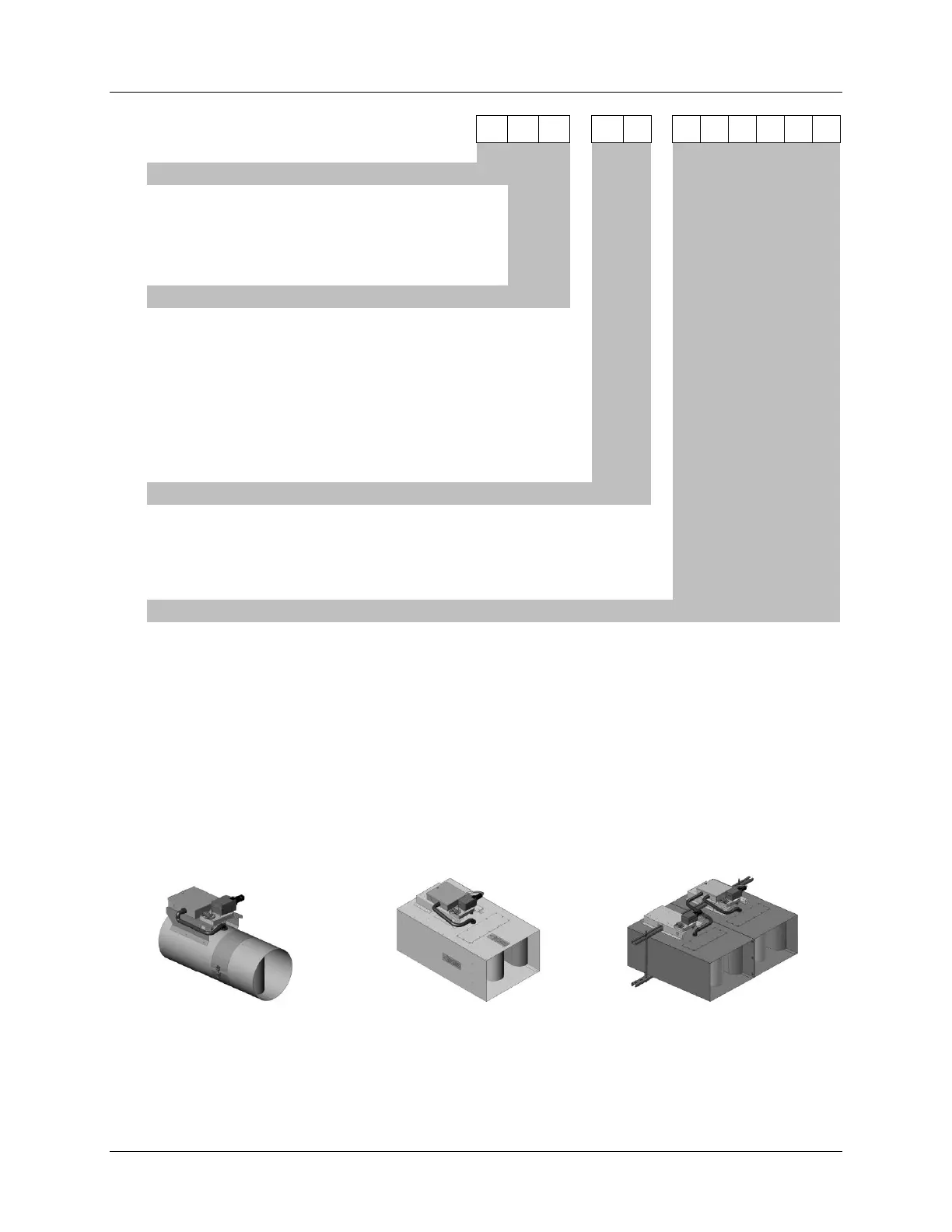

1.2 Model Code
A V T 6
-
-
VALVE MATERIAL
2 = 304ss, 20 Ga
3 = 316ss, 20 Ga
4 = Aluminum, 16 Ga
5 = PFA Coated 304ss, 20 Ga
6 = High Temp. 304ss, 20 Ga
VALVE SIZE
06 = 6" Diameter Round
08 = 8" Diameter Round
10 = 10" Diameter Round
12 = 12" Diameter Round
14 = 14" Diameter Round
18 = 12" h x 18" w Rectangular
24 = 12" h x 24" w Rectangular
36 = 12" h x 36" w Rectangular
48 = 12" h x 48" w Rectangular
ACTUATOR
02 = Fail Last Position, 2-sec full cycle, 0-10v, PN 20-0008
03 = Fail Last Position, 2-sec full cycle, 2-10v, PN 20-0009
04 = Fail Open/Closed, 2-sec full cycle, 0-10v, PN 20-0010
05 = Fail Open/Closed, 2-sec full cycle, 2-10v, PN 20-0011
07 = Fail Last Position, 21-sec full cycle 2-10v, PN 20-0057
OPTIONS
BLANK = No Options
A = AccuNet
B = BACnet
F = Flanges
I = Insulation
S = Tight Shut-off (All 6” valves have blade seals, therefore –S option is not available on 06)
W = Wireless Bluetooth
1.3 Valve Types
Round AccuValve
Sizes 06, 08, 10, 12 and 14
Rectangular AccuValve
Sizes 18 and 24
Rectangular AccuValve
Sizes 36 and 48

Accutrol AccuValve AVT6000 Specifications

General

Brand	Accutrol
Model	AccuValve AVT6000
Category	Control Unit
Language	English
