PREPARATION BEFORE INSTALLATION

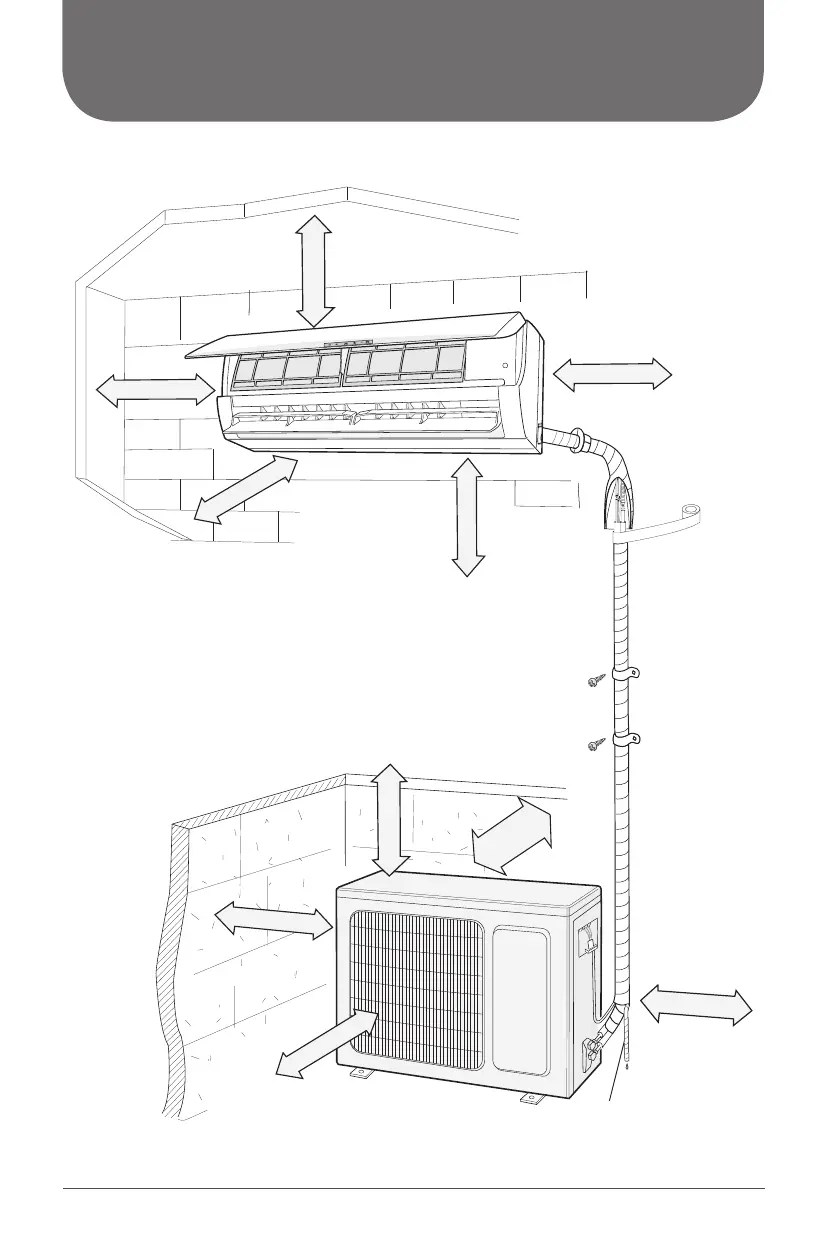

REQUIRED INSTALLATION CLEARANCE DISTANCES DIAGRAM
At least 15 cm
Space to the ceiling
Space to the wall
Space to the wall
At least 15 cm
At least 15 cm
At least 183 cm
Space to the floor
At least 300 cm
Space to the obstruction
Space to the obstruction
Space to the obstruction
Space to the
obstruction
Drainage pipe
Space to the obstruction
At least 50 cm
30 cm
recommended
1
At least 200 cm
At least 50 cm
At least 30 cm
Space to the wall
1
In the case of an installation where the recommended clearance of 30cm between the outdoor unit
and the wall can not be obtained, it is possible to install the outdoor unit at a distance of 20cm.
