ACE146
Speaker
Location: The speaker is located on the motherboard near the bottom right-hand corner.
Type and number of fastenings: 4 pin connectors
Tools required: None
Procedure
Step 1: Ensure the computer is off, unplugged, and any
potential energy is dissipated.
Step 2: Remove the top panel from the chassis as indicated
in the “Chassis Cover” section of this manual.
Step 3: Locate the speaker and gently but firmly pull away
from motherboard connector.
Reinstallation

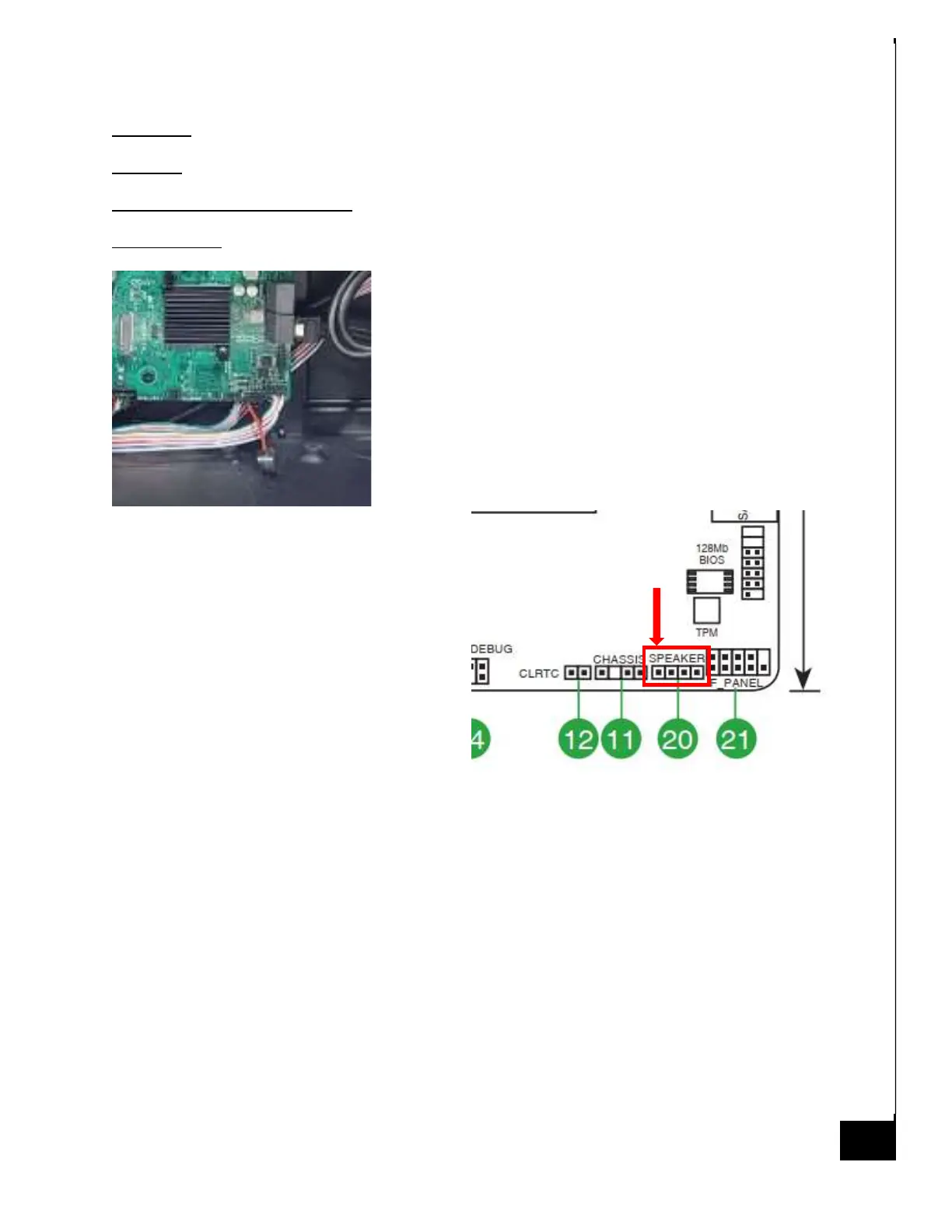

Step 4: Locating the speaker header on the
motherboard, reinstall the speaker with “RED
(+)” on the speaker aligning with PIN 1 of the
speaker header on the MB (see photo below
for reference, location is bottom right-hand
corner of MB).
