ACE146
Optical Drive (optional)
Location: The optical drive is an optional add on for this model. The optical drive is located in
the front top portion of the system.
Type and number of fastenings: One (1) Phillips screw.
Tools required: Screwdriver with PH2 bit.
Procedure
Step 1: Ensure the computer is off, unplugged, and any potential energy is dissipated.
Step 2: Remove the top panel from the chassis as indicated in the “Chassis Cover” section of
Step 3: Disconnect SATA power and data cables from DVD drive.
Step 4: Remove the Phillips screws.

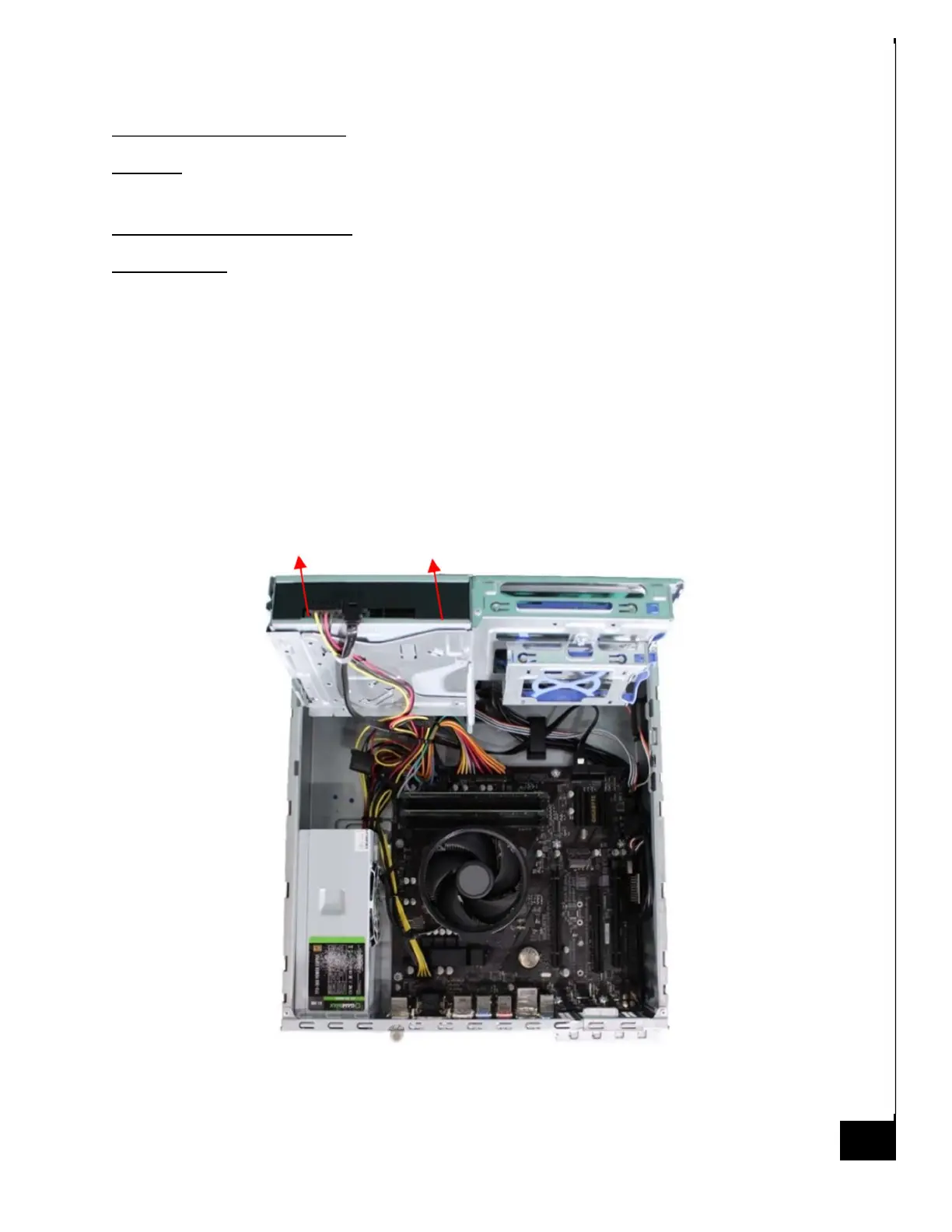

Step 5: Remove the optical drive from the casing by sliding upright.
