Acekool CW1 - Top Rail Assembly

Fig.C
Fig.BFig.A
BOX
Top Rail
Top Rail Assembly
Attaching the Top Rail to the Air Conditioner
The top rail must be assembled prior to installing the air conditioner in the window.
Tools Needed: Phillips Head Screw Driver
When handling the unit, be careful to avoid cuts from the sharp metal edges and aluminum
fins on the front and rear coils.
3/8"Screws *4
NOTE: For safety reasons, all 4 screws
must be used to attach the top rail.
Remove the air conditioner from the box and place on a hard and flat surface.

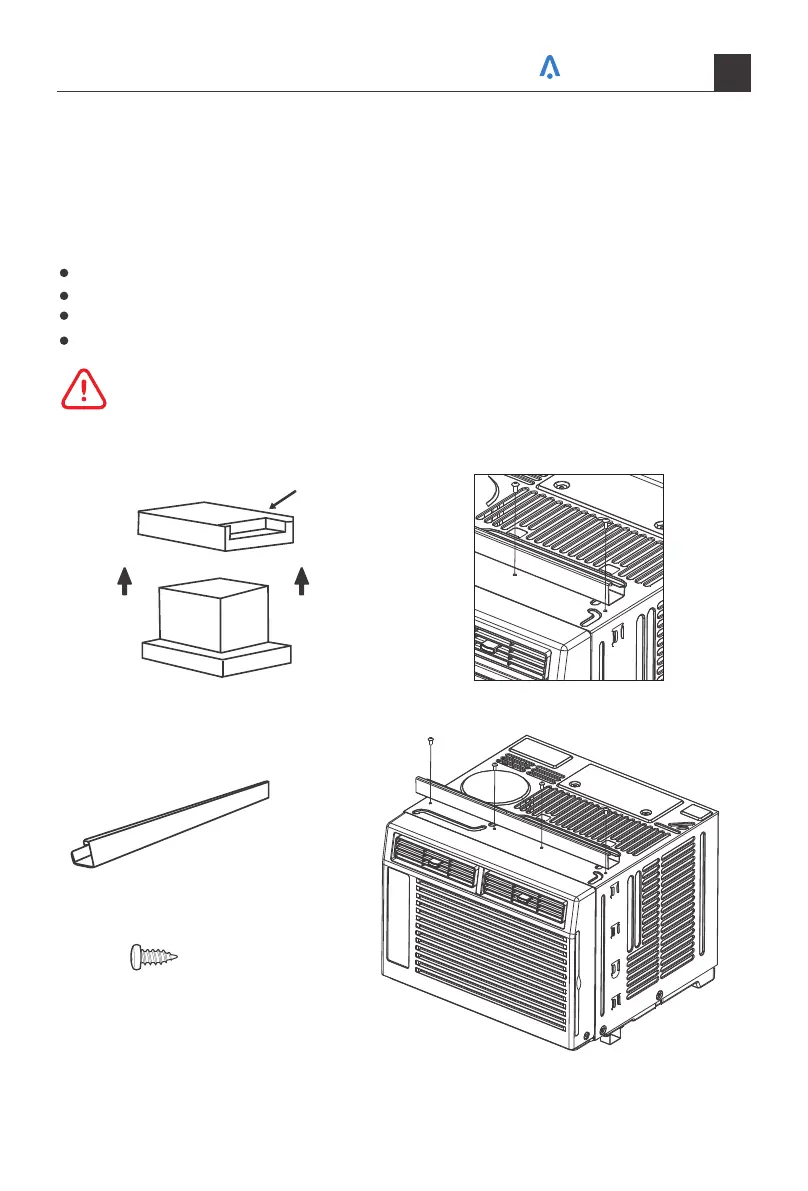

Remove top rail from the top of the packaging material as shown in Fig.A.
Align the hole in the top rail with those in the top of the unit as shown in Fig.B.
Secure the top rail to the unit with the 3/8" screws as shown in Fig.C.
Top Rail (With sponge) *1
