Fig.2 Fig.3
Fig.4

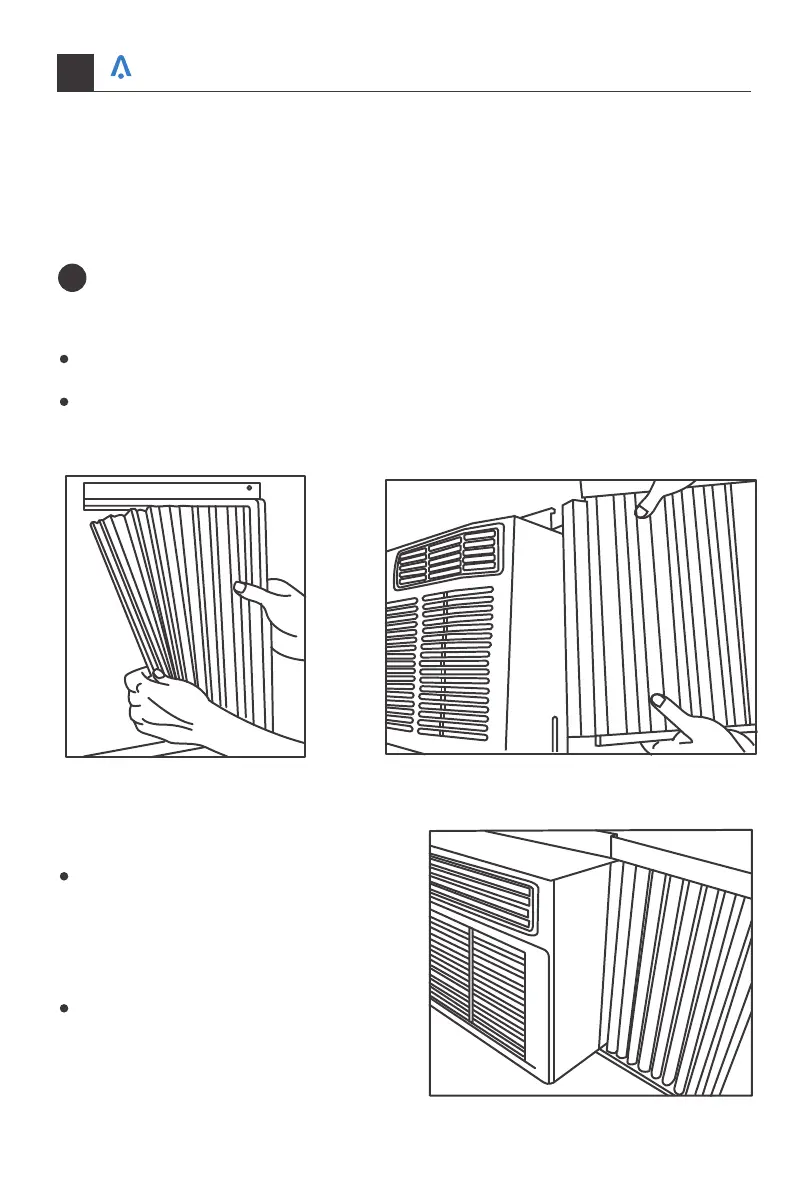

How to Install
NOTE: Top Rail and Sliding Panels at each side are offset to provide the proper pitch to
the rear of (5/16"). This is necessary for proper condensed water utilization and drainage.
If you are not using the Side Panels forany reason, this pitch to the rear must be maintained!
Place unit on floor, a bench or a table. There is a Left and Right Window Filler Panelbe
sure to use the proper panel for each side. When installed the flange for securing
the panel in place to the window sill will be facing into the room.
Hold the Accordion Panel in one hand and gently pull back the center to free the open
end. See Fig.2.
Slide the free end of the panel into the cabinet as shown in Fi.3. Slide the panel down.
Be sure to leave enough space to slip the top and bottom of the frame into the rails
on the cabinet.
Once the panel has been installed on the
side of the cabinet, make sure it sits secu-
rely inside the frame channel by making
slight adjustments. Slide the top and bot-
tom ends of the frame into the top and
bottom rails of the cabinet. See Fig.4.
Slide the panel all the way in and repeat
on the other side.
1
