Keep a firm grip on the air conditioner, carefully place the unit into the window
opening so the bottom of the air conditioner frame is against the window sill (Fig.5).
Carefully close the window behindthe top rail of the unit. (Suggest to keep a down-
ward oblique, to let accumulated rain water to drain out, from back side of the
unit bottom.)
2
Place the frame lock between the frame extensions and the window sill as shown
(Fig.7). Drive 3/4" (19 mm) locking screws through the frame lock and into the sill
(Fig.8).
NOTE: To prevent window sill from splitting, drill 1/8" (3 mm) pilot holes before
driving screws.
4
Extend the side panels out against the window frame (Fig.6).
3

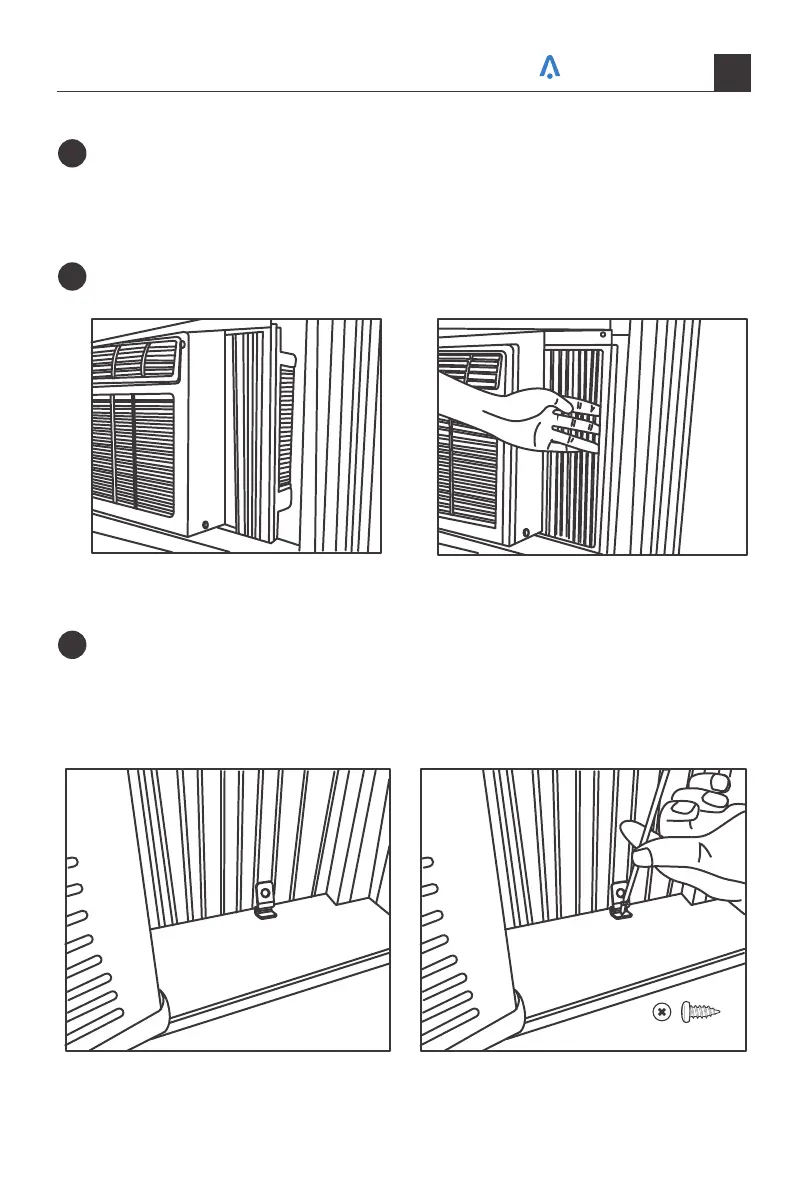

Fig.5 Fig.6
Fig.7 Fig.8
3/8"Screws *4
