Chapter 3 57

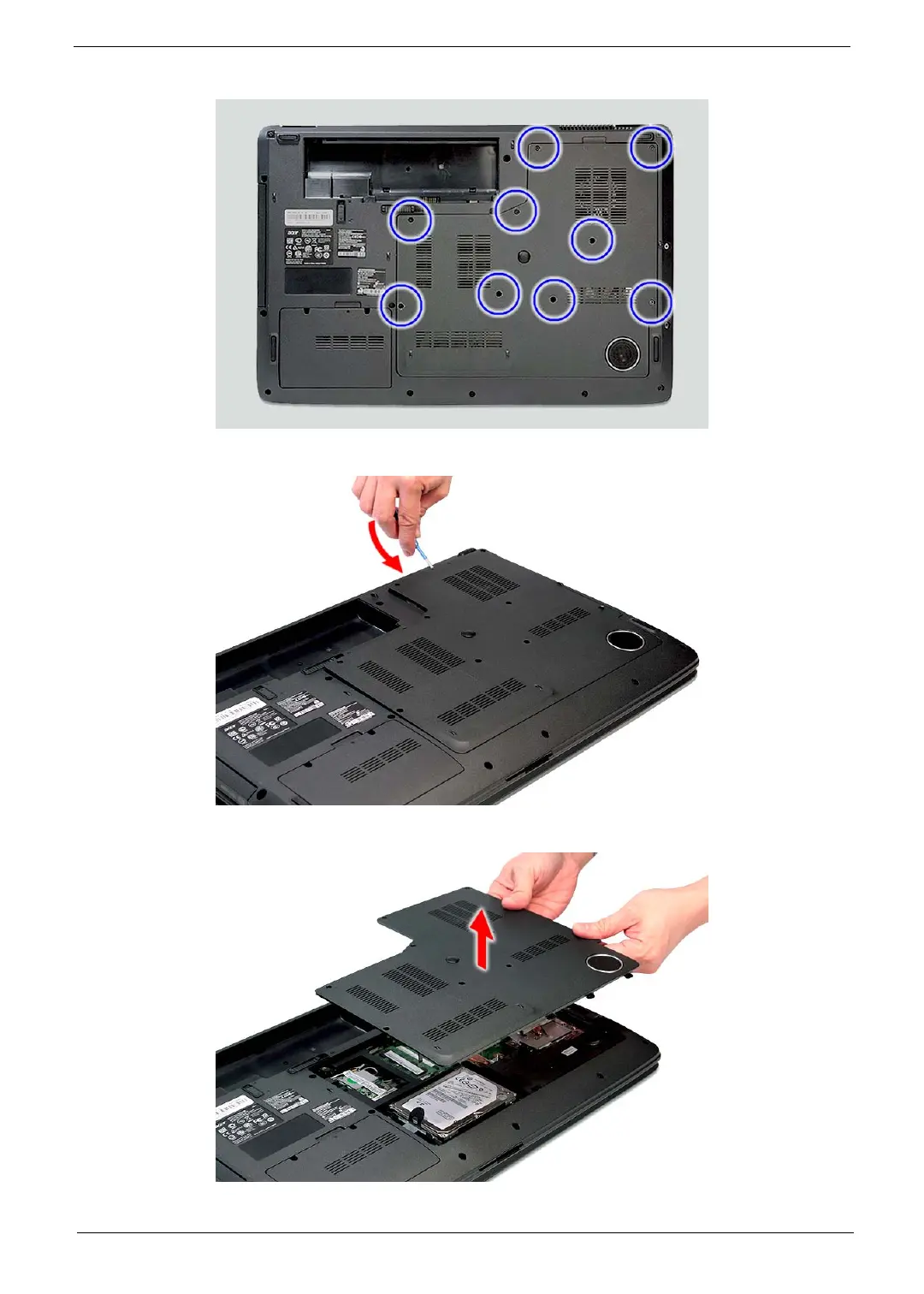

2. Remove the nine captive screws securing the lower cover.

3. Use a plastic screw driver to carefully pry open the lower cover.

4. Remove the lower cover from the lower case.
