Acer 8735 - Removing the Middle Cover

172 pages

To Next Page

To Previous Page

Chapter 3 73

Removing the Middle Cover

1. See “Removing the Battery Pack” on page 54.

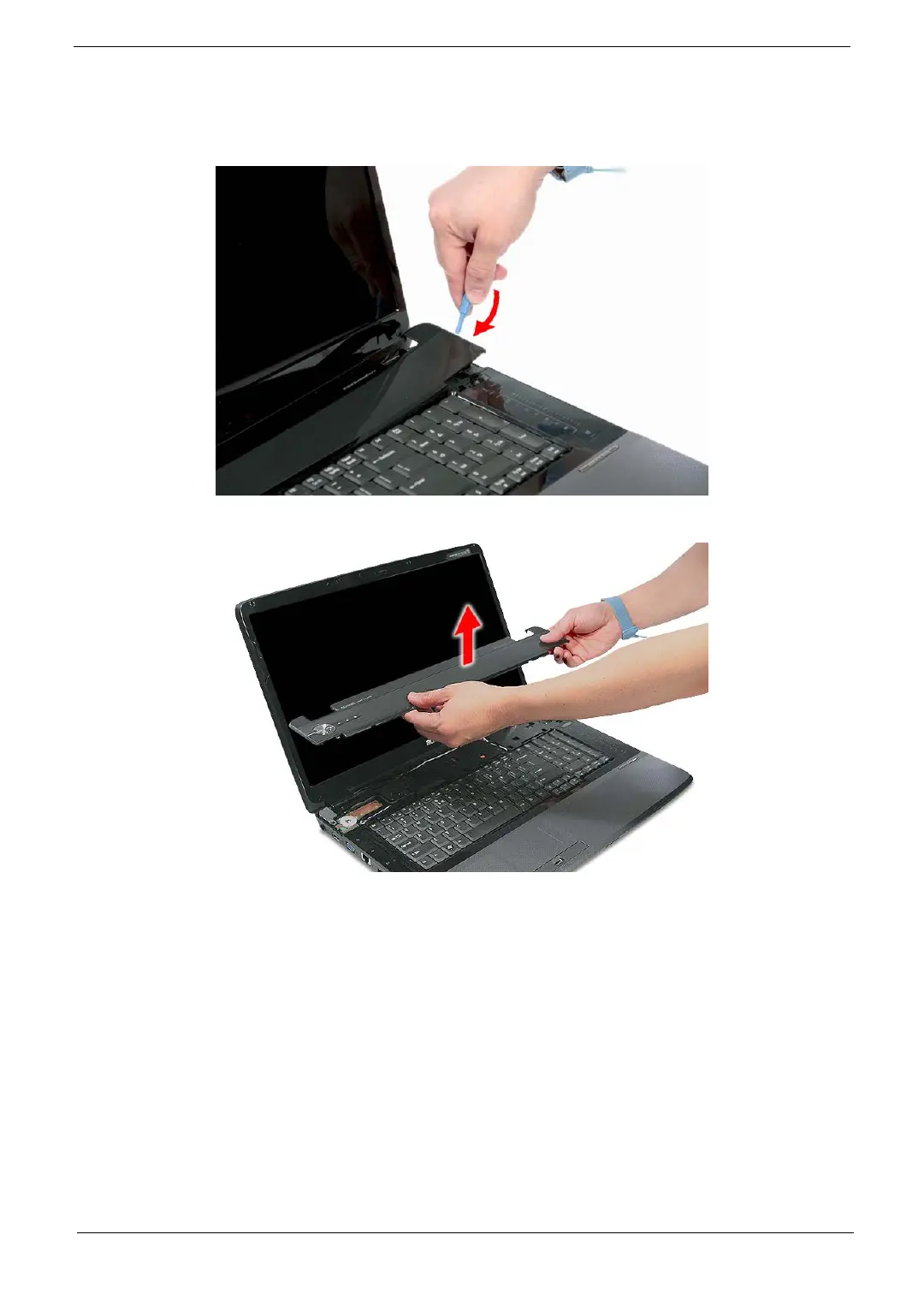

2. Use a plastic screw driver to pry loose the side of the middle cover.

3. Carefully pry loose the middle cover from the latches securing it and remove the middle cover.
