68 Chapter 3

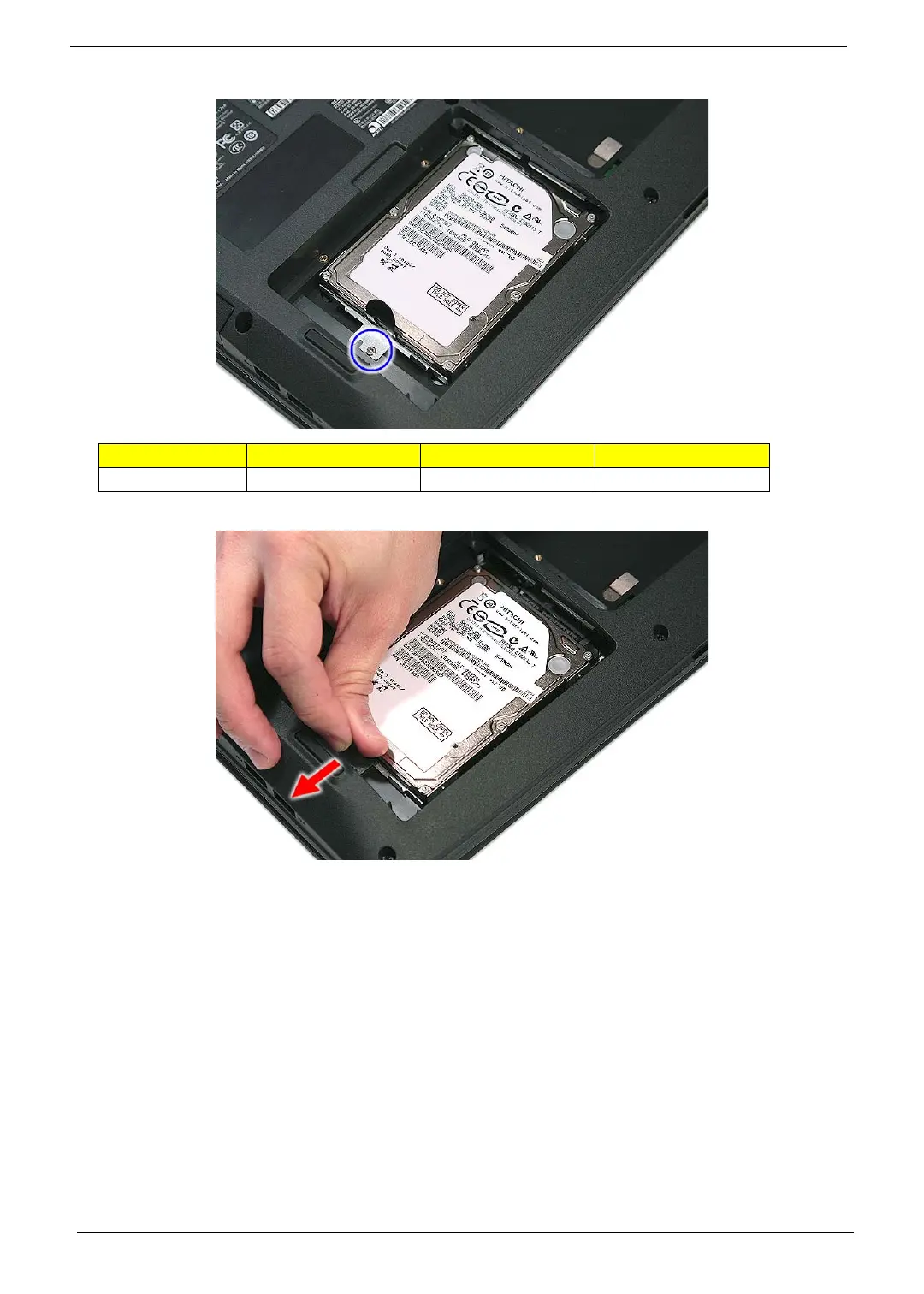

3. Remove the one screw (B) securing the hard disk drive module.

4. Slide the hard disk drive module away from the connector.

Step Size (Quantity) Color Torque

1 M2 x L4 (1) Silver 1.6 kgf-cm
