Chapter 3 79

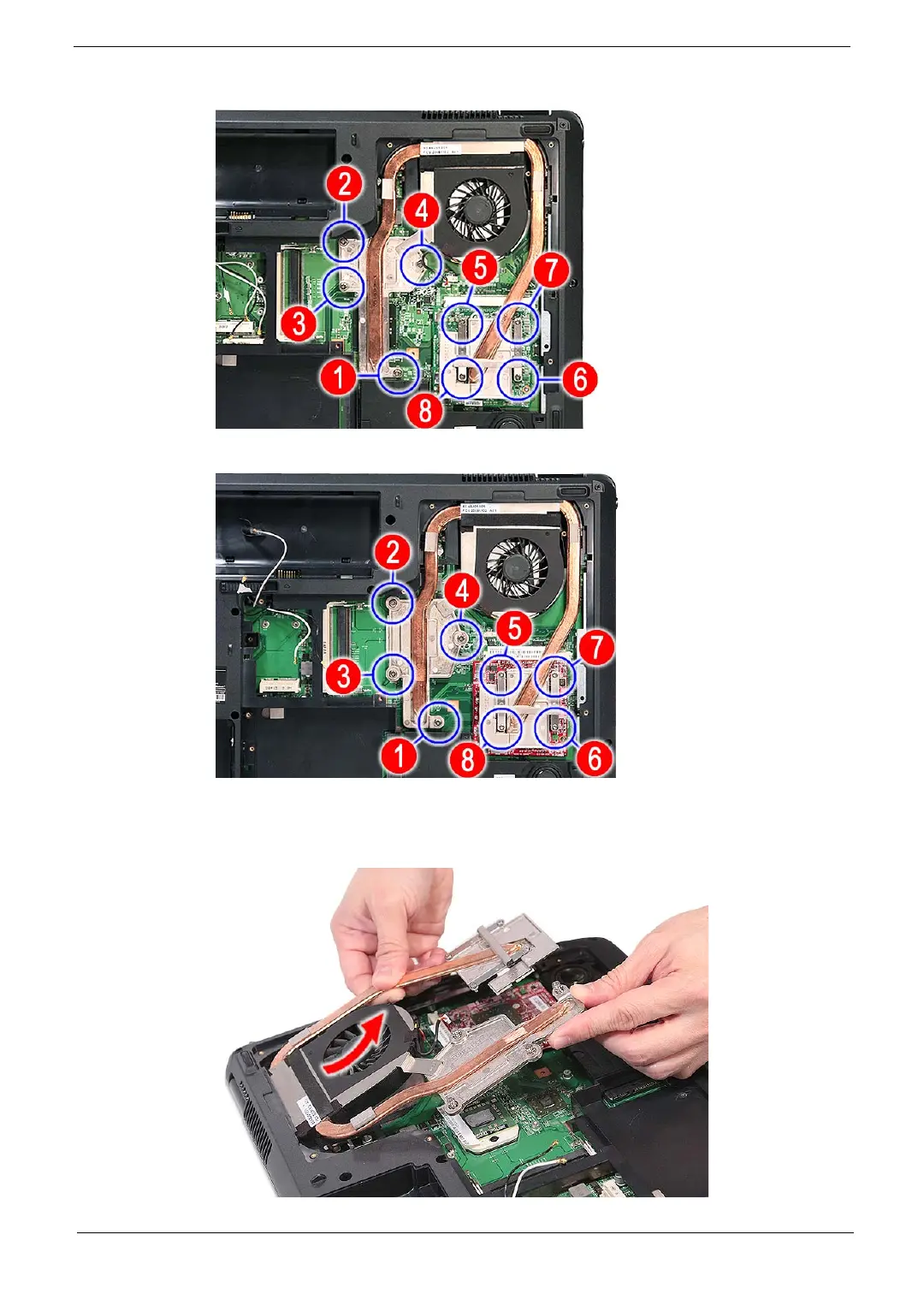

4. Remove the eight screws securing the heatsink module in the order shown.

NOTE: The green VGA board in Aspire 8730/8730Z Series is made by NVdia, while the red VGA board in

Aspire 8530 Series is made by ATI.

5. Carefully lift up the heatsink module.
