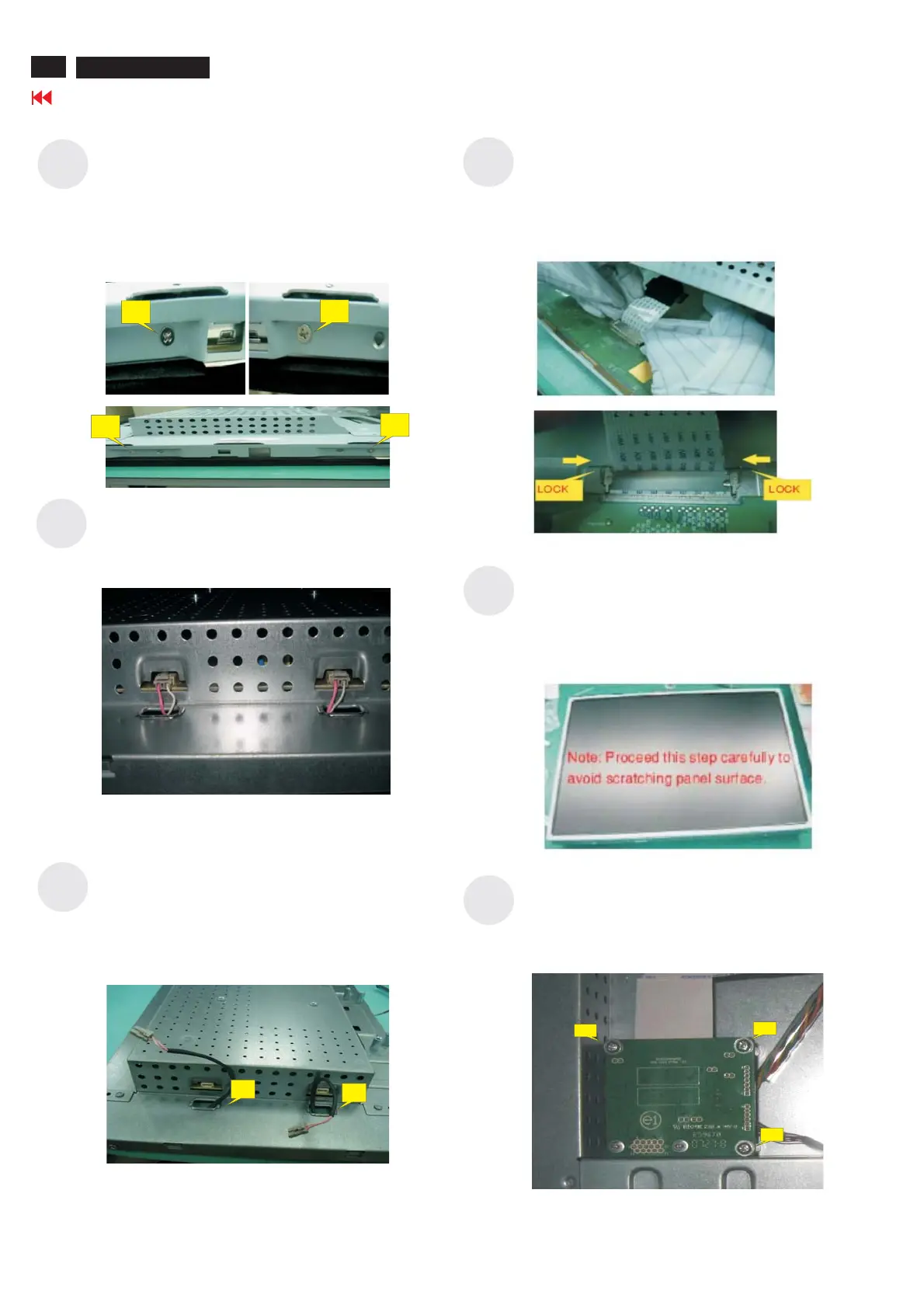

Take out lamp cables right through the No.1-2
square holes and separate the bracket chassis
module and LCD panel apart.
Unplug 2 lamp cables
Use a Phillips-head screwdriver unscrewed the
No.1~4 screws to disassemble the LCD panel
and bracket chassis module.
(No1~4 screw size=M3x6; Torque=2~3KGFxCM).
Disconnect the FFC cable to the connector of
panel.
Use finger to push the lock according to arrow
direction then take out the FFC cable
Examine the panel surface accoring to inspection
criteria. Put it aside.
Use a Phillips-head screwdriver unscrewed the
No.1~3 screws to release the interface board.
(No1~3 screw size=M3x6; Torque=9~10KGFxCM).
