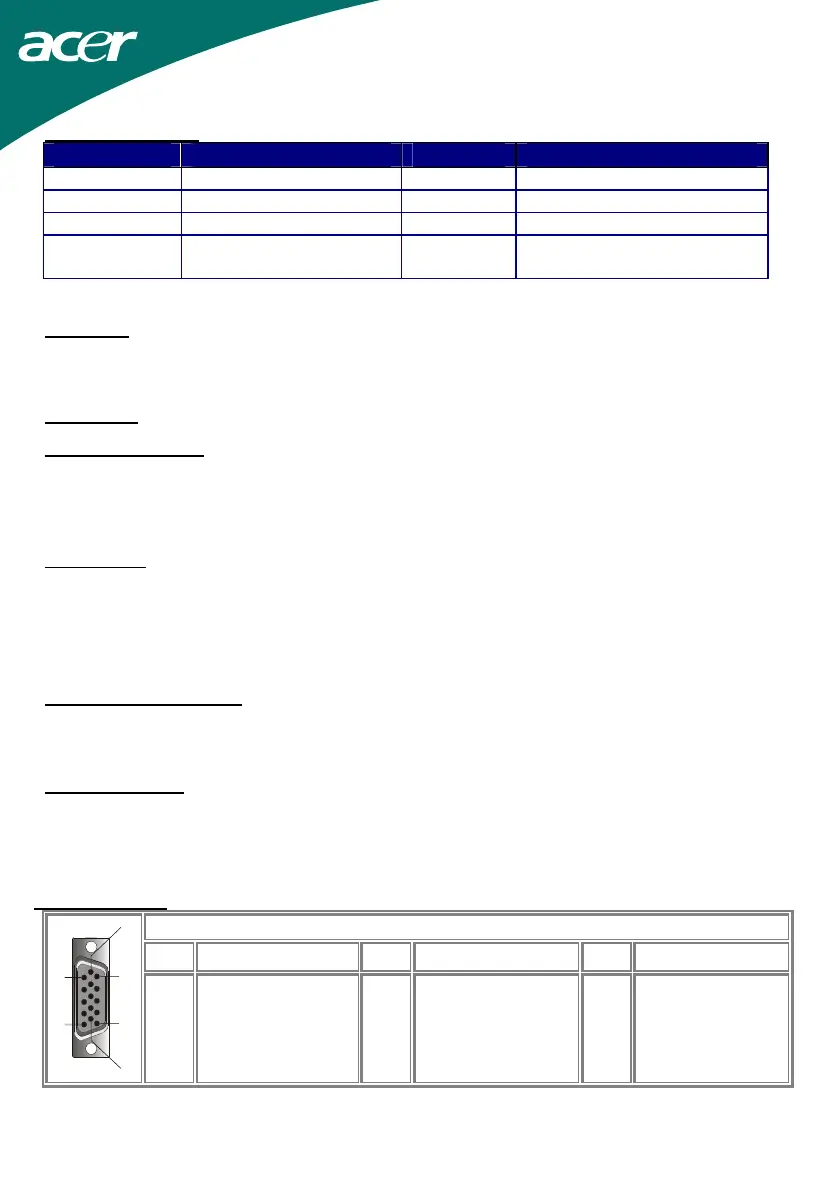

Acer AL1715

12
Power Management
Mode Power Consumption* AC Input LED Color
On 60W maximum 240 VAC Green
Off 3W maximum 240 VAC Yellow
Soft switch off 3W maximum 240 VAC Dark
Disconnected 3W maximum 240 VAC
Yellow: Standby, Suspend, Off
Dark: DC Power off
* Meeting VESA DPMS requirements measured from AC Input end of AC power cord.
Sync Input
Signal Separate TTL compatible horizontal and vertical synchronization
Polarity Positive and negative
Plug & Play
Supports VESA DDC2B functions
External Connection
Power Input (AC input) AC socket
Video Cable 1.8M with 15-pin D-sub connector
Audio Cable 1.8M with Stereo Jack
Environment
Operating Condition:
Storage Condition:
Temperature
Relative Humidity
Temperature
Relative Humidity
5°C to 40°C/41°F to 104°F
20% to 80%
-20°C to 60° C/-4°F to140° F
5% to 85%
Power Supply (AC Input)
Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz
Input Current 1.2 A maximum
Size and Weight
Dimensions 377 (W) x 393 (H) x 159.8 (D) mm
Net Weight
5 ± 0.5 kg
Gross Weight
7 ± 0.5 kg
Pin Assignment
Signal
PIN Description PIN Description PIN Description
1
5
6
10
11
15
1
2
3
4
5
Red
Green
Blue
Digital GND
Digital GND
6
7
8
9
10
Red Rtn
Green Rtn
Blue Rtn
+5V
Hot Plug Detect
11
12
13
14
15
NC
SDA
H. Sync.
V. Sync.
SCL
