Optical characteristics measurement setup
Notes 5) Definition of Luminance of White : measure the luminance of white at center point.

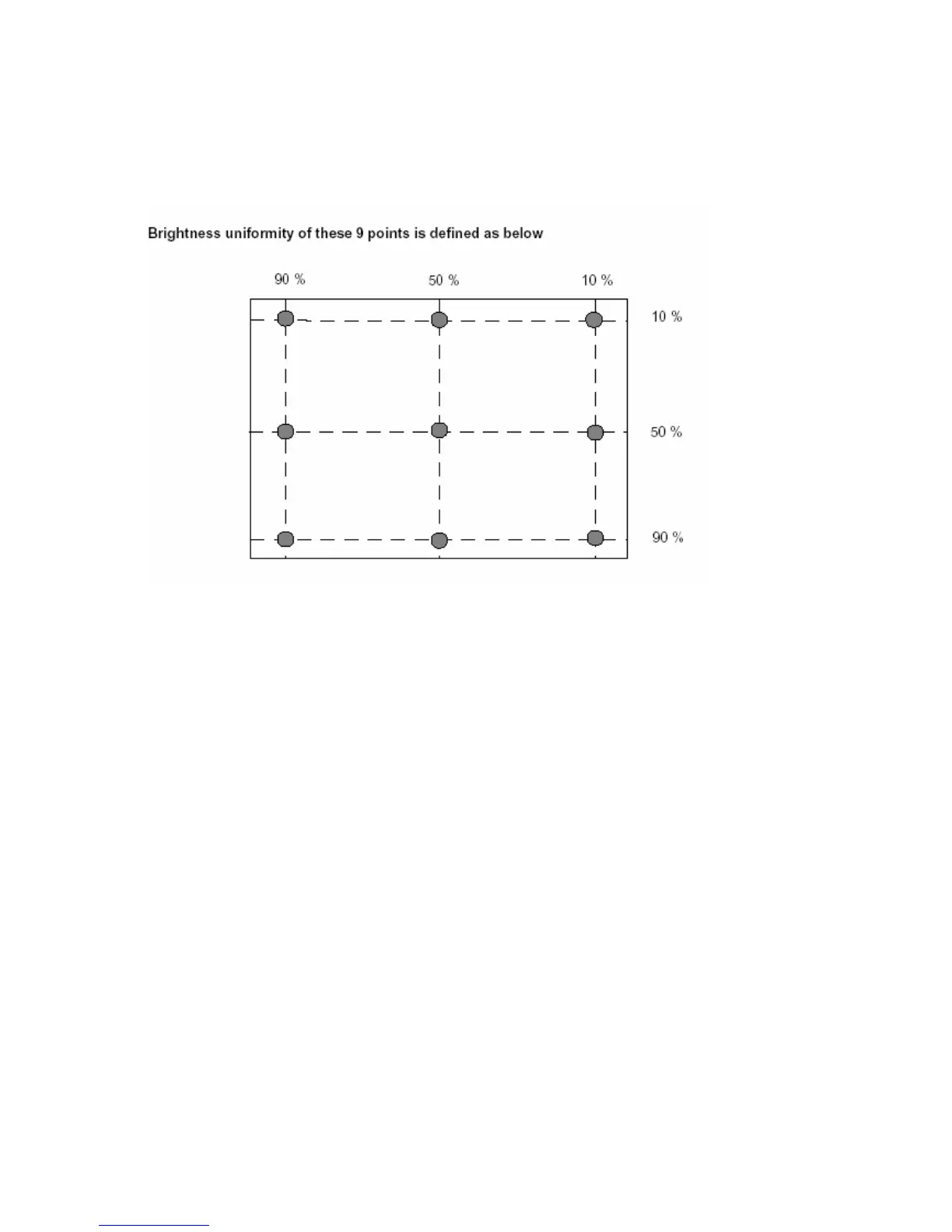

Notes 6)Definition of 9 points brightness uniformity (Measuring points: Refer to the Note 5)
AU
Bmin
B
UNI
= X 100%
Bmax
Samsumg
Bmax-Bmin
B
UNI
= X 100%
Bmax
Bmax: Maximum brightness
Bmin: Minimum brightness
Notes 7) Definition of Flicker level
Flicker Voltage
pp
F = x 100 %
LMD Voltage
dc
♦ One maximum value of three estimated values.
♦ For this test ,an LMD(Light Measurement Device)is needed with adequate response time
to track any visible rate flicker component and with a voltage level output proportional
To luminance intensity.
♦ Test Pattern: For dot inversion Driving(Gray levels of foreground dots on the test panel
Are G22,G32,and G45)
