Acer Aspire 4738Z - Replacing the Lower Cover

Chapter 3 111
Replacing the Lower Cover

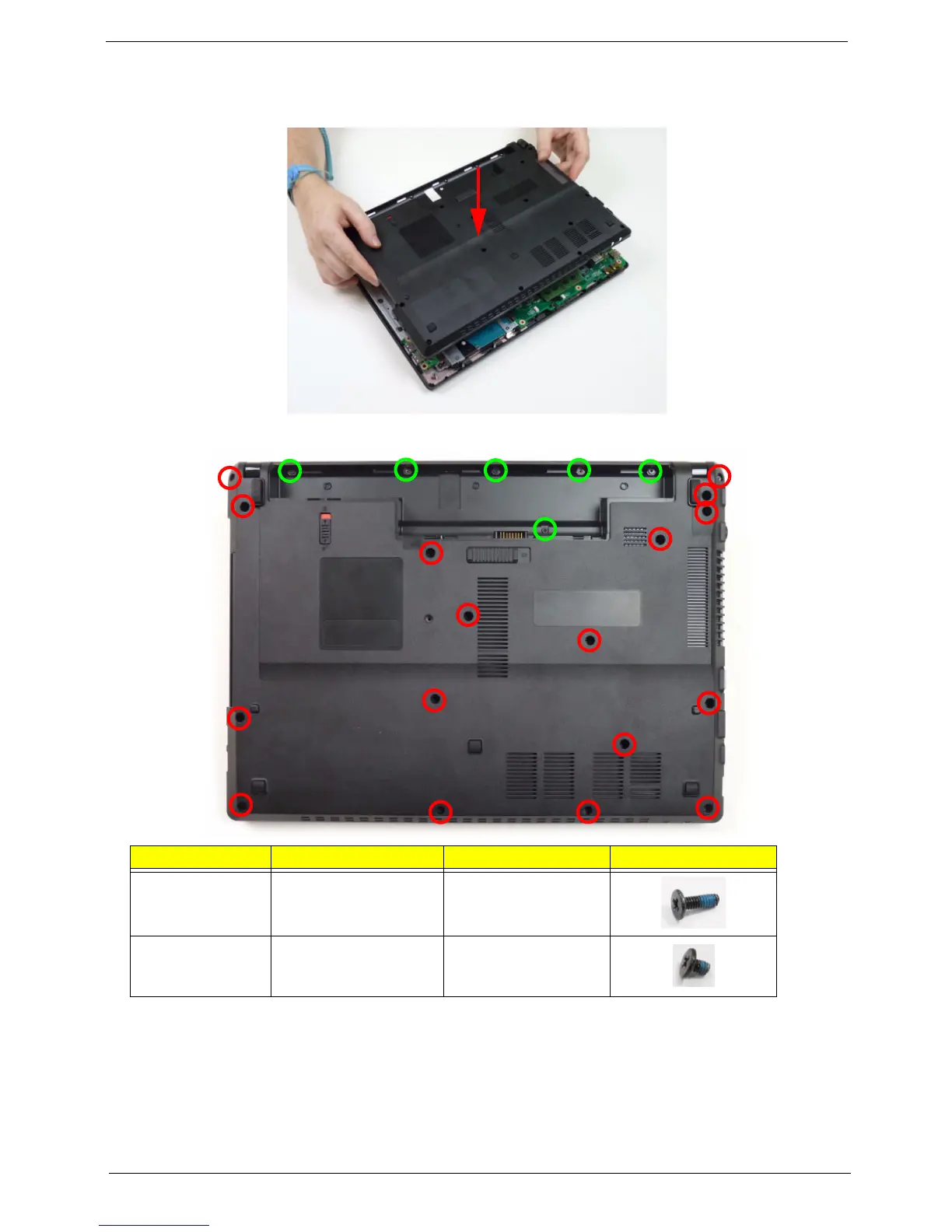

1. Place the lower cover onto the device.
2. Replace the twenty three (23) screws to secure the lower cover to the device.
Step Size Quantity Screw Type
Lower Cover
(red callout)
M2.5*6.5 17
Battery Bay
(green callout)
M2.0*3.0 6
