Acer Aspire 4738Z - Removing the LCD Module

Chapter 3 69

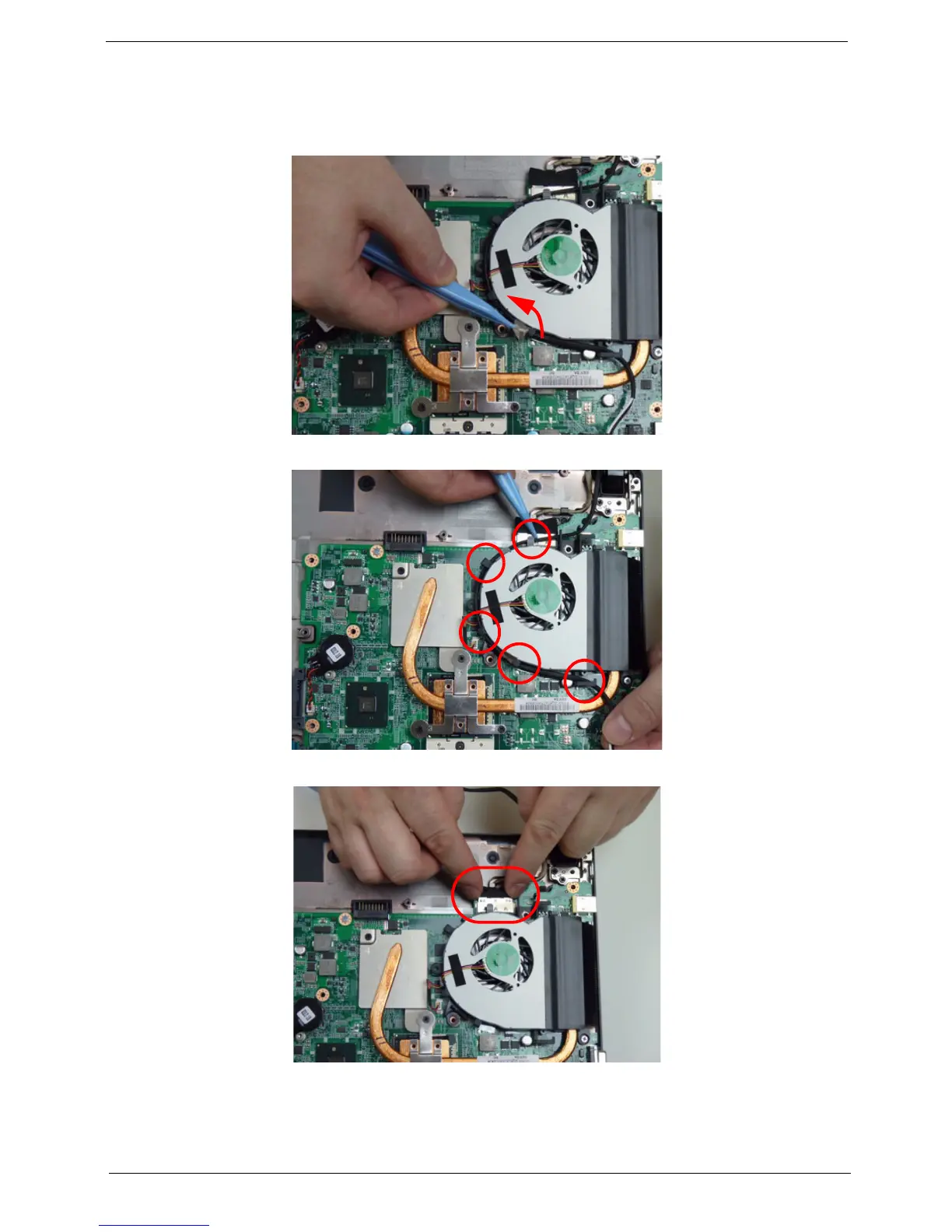

Removing the LCD Module
1. See “Disassembly Overview” on page 60.
2. Remove the adhesive ground wire from the fan housing.
3. Remove the WLAN antennas from the cable guides.
4. Unlock and disconnect the LVDS cable.
