Acer Aspire 5670 Service Manual

64 Chapter 3
Removing the TV Tuner, Heatsink Module, CPU, and HDD
Module

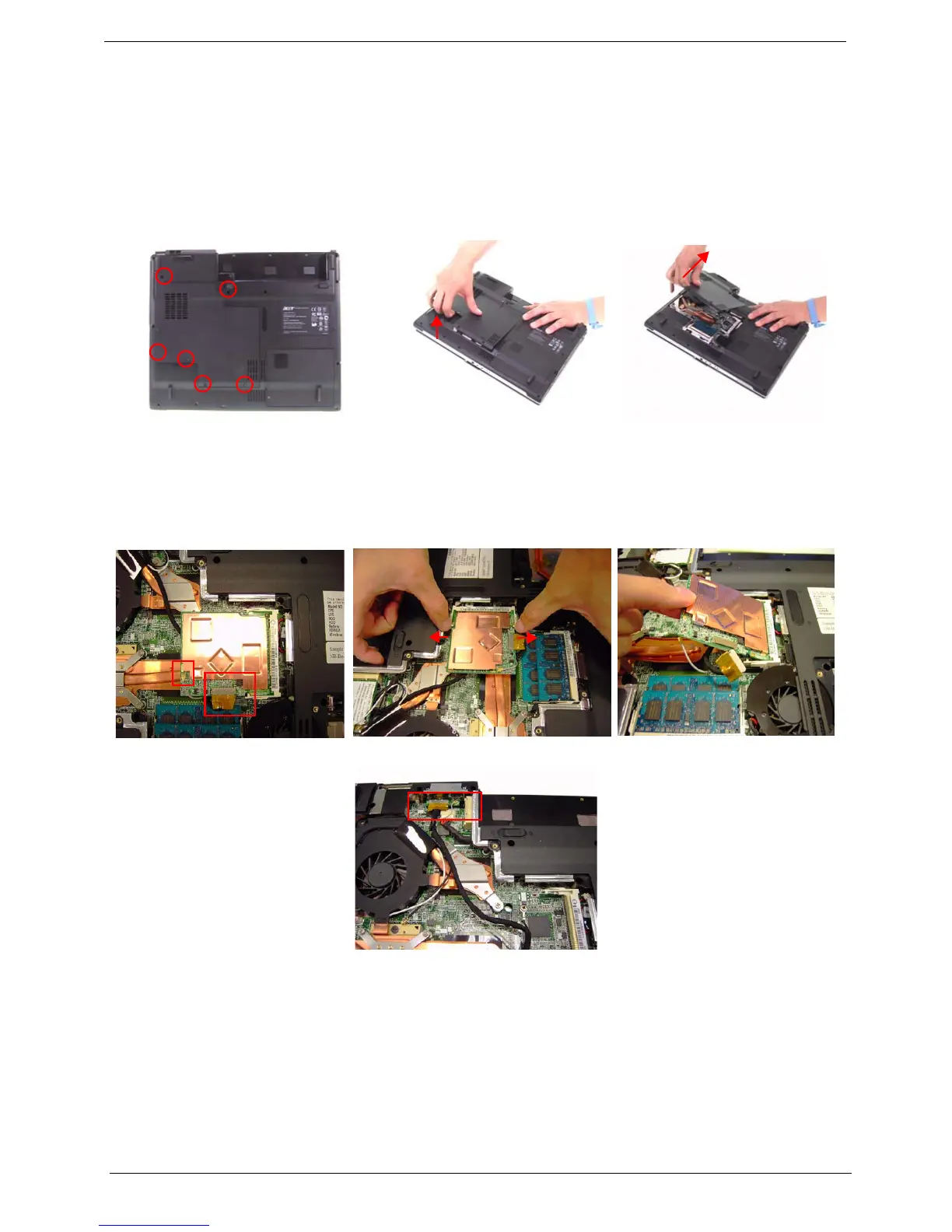

Remove the Heatsink Cover
1. Release the six screws securing the heatsink cover. (The six screws are attached to the heatsink cover)
2. Lift the heatsink cover up and remove it.
Remove the TV Tuner Card(for selected models)
1. Disconnect the TV tuner cable and antenna from the TV tuner card.
2. Press the left and right latch to release the TV tuner card.
3. Disconnect the TV tuner cable and antenna from the TV board.
Remove the Heatsink Module
1. Disconnect the main fan cable from the mainboard.
2. Remove the seven screws securing the heatsink module.

Acer Aspire 5670 Specifications

General

RAM	512 MB DDR2
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Home
Weight	2.8 kg
Optical Drive	DVD±RW
Networking	802.11a/b/g Wi-Fi
Ports	ExpressCard slot
Battery	6-cell Li-ion
