5-98 Service and Maintenance
LCD Panel Installation

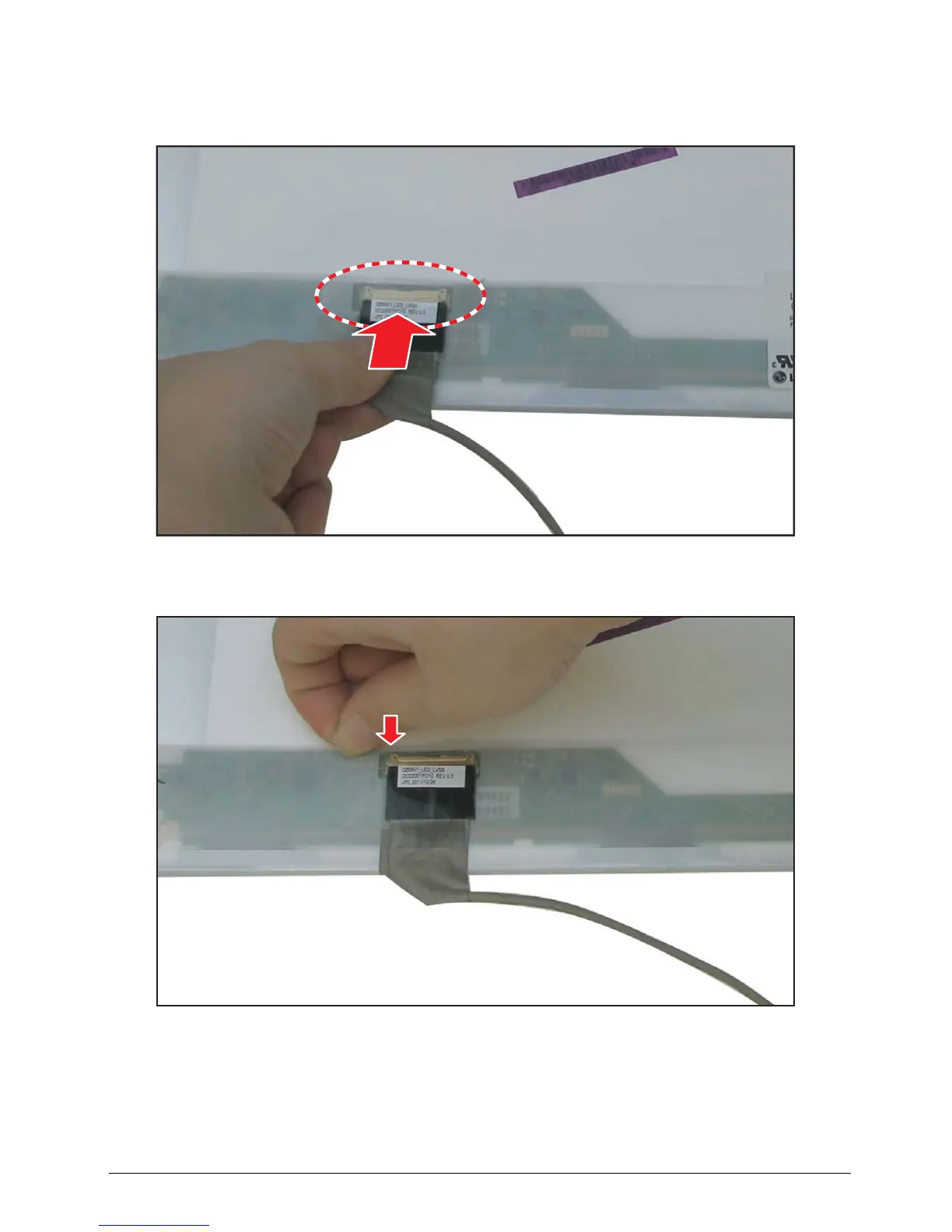

1. Connect the LVDS cable connector to the LCD panel connector.
Figure 5:150. Connecting the LVDS Cable
2. Attach the protective tape to cover the LVDS cable connector.
Figure 5:151. Securing the Protective Tape
